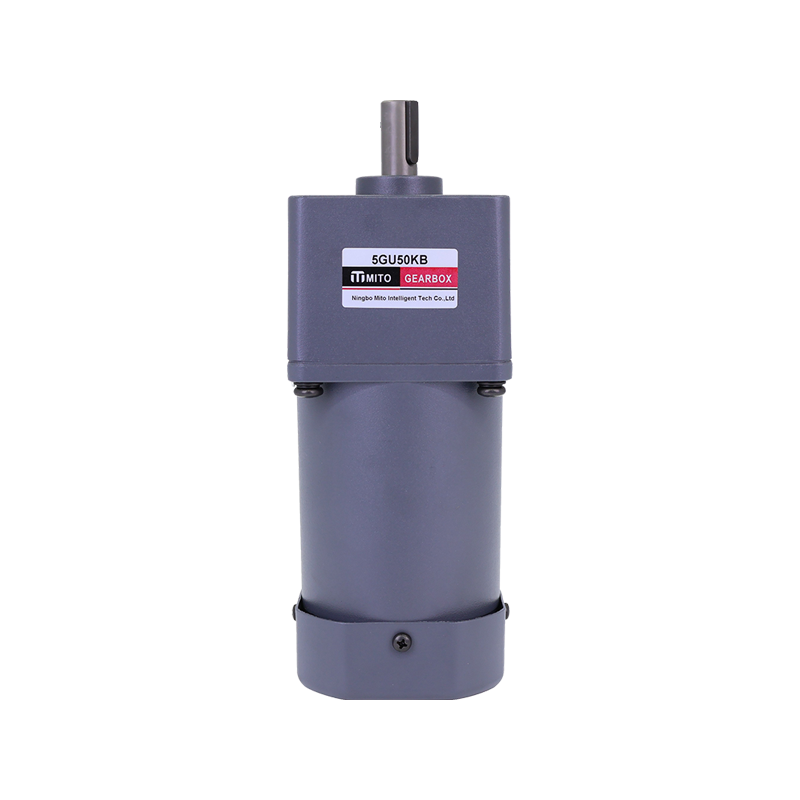

3RK 70mm 15W

AC Brake Motor

Motor Type: 3RK

Power: 15W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Motor Parameter Table

Model ·Type Lead Wire Type		Rating	Output Power W	Voltage V	Frequeny Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft	Round Shaft
3RK15GN-AM	3RK15A-AM	30min	15	1ph 100	5060	0.40 0.56	110	125	1200	7.0
							105	105	1450
3RK15GN-EM	3RK15A-EM	30min	15	1ph 110	60	0.43	85	105	1450	6.0
				1ph 120		0.42
3RK15GN-CM	3RK15A-CM	30min	15	1ph 220	50	0.23	110	125	1200	1.5
				1ph 230
3RK15GN-HM	3RK15A-HM	30min	15	1ph 220	60	0.20	85	105	1450	1.5
				1ph 230			90
3RK15GN-SM	3RK15A-SM	30min	15	3ph 220	50	0.14	220	125	1200	-
					60	0.12	180	105	1450
3RK15GN-S3M	3RK15A-S3M	30min	15	3ph 380	50	0.08	220	125	1200	-
					60	0.06	180	105	1450

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
3RK15GN-AM 3RK15GN-EM 3RK15GN-CM 3RK15GN-HM 3RK15GN-SM 3RK15GN-S3M	3GN□K	50Hz	0.30	0.36	0.51	0.61	0.76	0.91	0.97	1.30	1.50	1.80	1.94	2.30	2.70	3.30	3.48	4.10	5.00	5.00	5.00	5.00	5.00	5.00	5.00	5.00
		50Hz	3.06	3.67	5.20	6.22	7.75	9.28	9.90	13.2	15.3	18.3	9.8	23.4	27.5	33.7	35.5	41.8	50.0	50.0	50.0	50.0	50.0	50.0	50.0	50.0
		60Hz	0.26	0.31	0.43	0.51	0.64	0.77	0.80	1.10	1.30	1.50	1.64	1.90	2.30	2.80	2.88	3.50	4.20	5.00	5.00	5.00	5.00	5.00	5.00	5.00
		60Hz	2.65	3.16	4.38	5.20	6.53	7.85	8.16	11.2	13.2	15.3	16.7	19.3	23.4	28.5	29.4	35.7	42.8	50.0	50.0	50.0	50.0	50.0	50.0	50.0

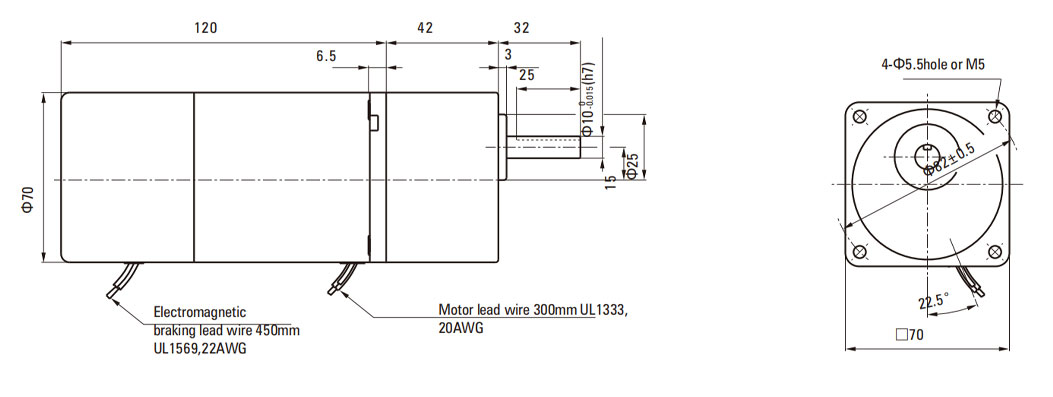

Lead Wiring Type

Description

The high-torque AC brake motor is a drive product designed for high-load, demanding braking applications. It is suitable for industrial automation applications requiring higher starting torque, braking reliability, and operational stability. This model utilizes a 3RK motor structure, specifically optimized for structural strength and output capability. With a rated power of 15W, it maintains stable power output under continuous operation and frequent start-stop conditions, providing ample driving margin for equipment.
In terms of electrical configuration, this high-torque AC brake motor supports a wide voltage input range of 110V–380V, allowing for flexible adaptation to different regions and power supply systems, reducing the difficulty of electrical adaptation in cross-project applications and equipment export. The motor integrates a highly reliable braking unit, which responds quickly and generates stable braking torque during power outages or emergency stops, effectively locking the load position and preventing displacement caused by inertia or gravity, thereby improving the overall system safety and controllability.
This product can be paired with a reduction ratio range of 3–200K, achieving high torque output while maintaining flexibility in speed adjustment. By rationally configuring the reduction ratio, the motor output can be converted into greater effective torque, suitable for applications requiring low speed and high torque operation, such as lifting mechanisms, heavy-duty conveying devices, and actuators requiring precise positioning. The reduction mechanism works in conjunction with the motor braking system to reduce braking impact, improve operational smoothness, and extend the service life of critical components.
