100W

Single Phase Small AC Gear Motor

Motor Type:Horizonal&Vertical

Power:1/8HP

Voltage:1-Phase&3-Phase 220-380V

Gearbox Ratio:3-1800

Motor Parameter Table

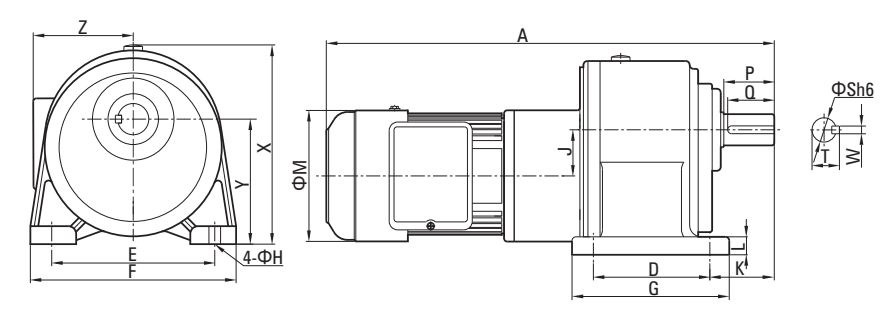

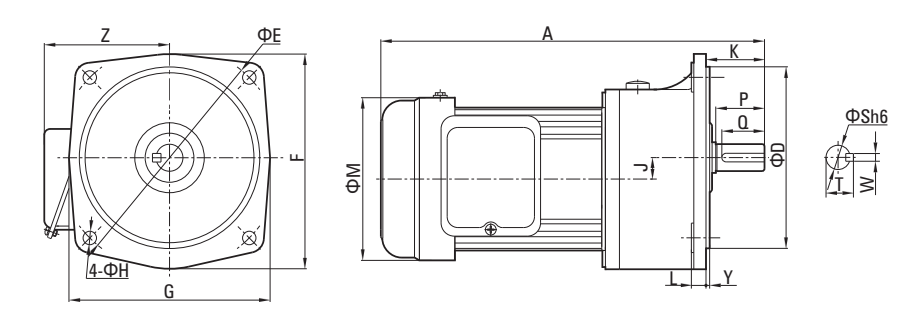

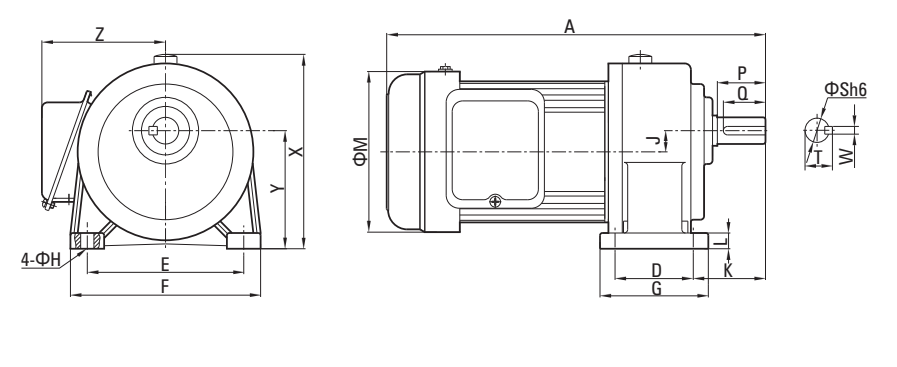

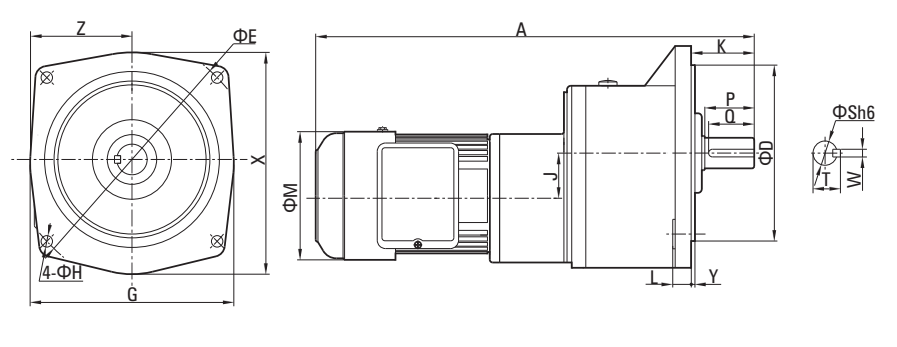

Power	Box Number	Ratio	A	D	E	F	G	H	J	K	L	M	X	Y	Z	S	P	Q	W	T	Weight
100W 1/8HP	1#	3-50 Standard type	250	40(50)	110(140)	135(120)	65(120)	9	16	50(40)	10.5(12)	133	143(/)	88.5(2)	105	18	30	27	5	20.2	5.7
	1#	60-200 Light duty type	250	40(50)	110(140)	135(120)	65(120)	9	16	50(40)	10(12)	133	143(/)	88.5(2)	105	18	30	27	5	20.2	5.7
	2#	60-200 Standard type	280	65(148)	130(185)	158(175)	90(165)	12	17.5	60(48)	13(12)	133	152(/)	97.5(3)	105	22	40	35	7	25	7.30
	2#	250-1800 Light duty type (1#+2#)	345	65(148)	130(185)	158(175)	90(165)	12	33.5	60(48)	13(12)	133	152(/)	97.5(3)	105	22	40	35	7	25	12.0
	3#	250-1800 Standard type (1#+3#)	375	90(170)	140(220)	178(205)	120(195)	12	39	68(58)	17(13)	133	178(/)	116(3)	120	28	45	40	7	31.1	14.5
	3#		/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/	/

Allowance Torque

Power

Box

Number

Type

Speed frequency ratio

100

120

140

160

180

200

100W

1/8HP

Standard type

50Hz

0.20

0.30

0.60

0.80

1.10

1.40

1.70

2.30

2.50

2.80

60Hz

0.16

0.26

0.52

0.76

1.0

1.20

1.50

1.90

2.20

2.30

Light duty type

50Hz

3.40

60Hz

3.40

Standard type

50Hz

3.40

3.90

4.50

5.10

5.60

6.80

7.90

9.00

10.1

11.3

60Hz

2.80

3.30

3.70

4.20

4.60

5.60

6.50

7.40

8.40

9.30

Light duty type

50Hz

60Hz

Power	Box Number	Type	Speed frequency ratio	250	300	350	400	450	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700	1800
100W 1 /8HP	1#+2#	Light duty type	50Hz	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6
	1#+2#	Light duty type	60Hz	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6	11.6
	1#+3#	Standard type	50Hz	11.2	11.2	11.2	11.2	11.2	11.2	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9
	1#+3#	Standard type	60Hz	11.2	11.2	11.2	11.2	11.2	11.2	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9	22.9
