5RK 90mm 60W

Reversible Motor

Motor Type:5RK

Power:60W

Voltage:110-380V

Gearbox Ratio:3-180K

Motor Parameter Table

Model ·Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF

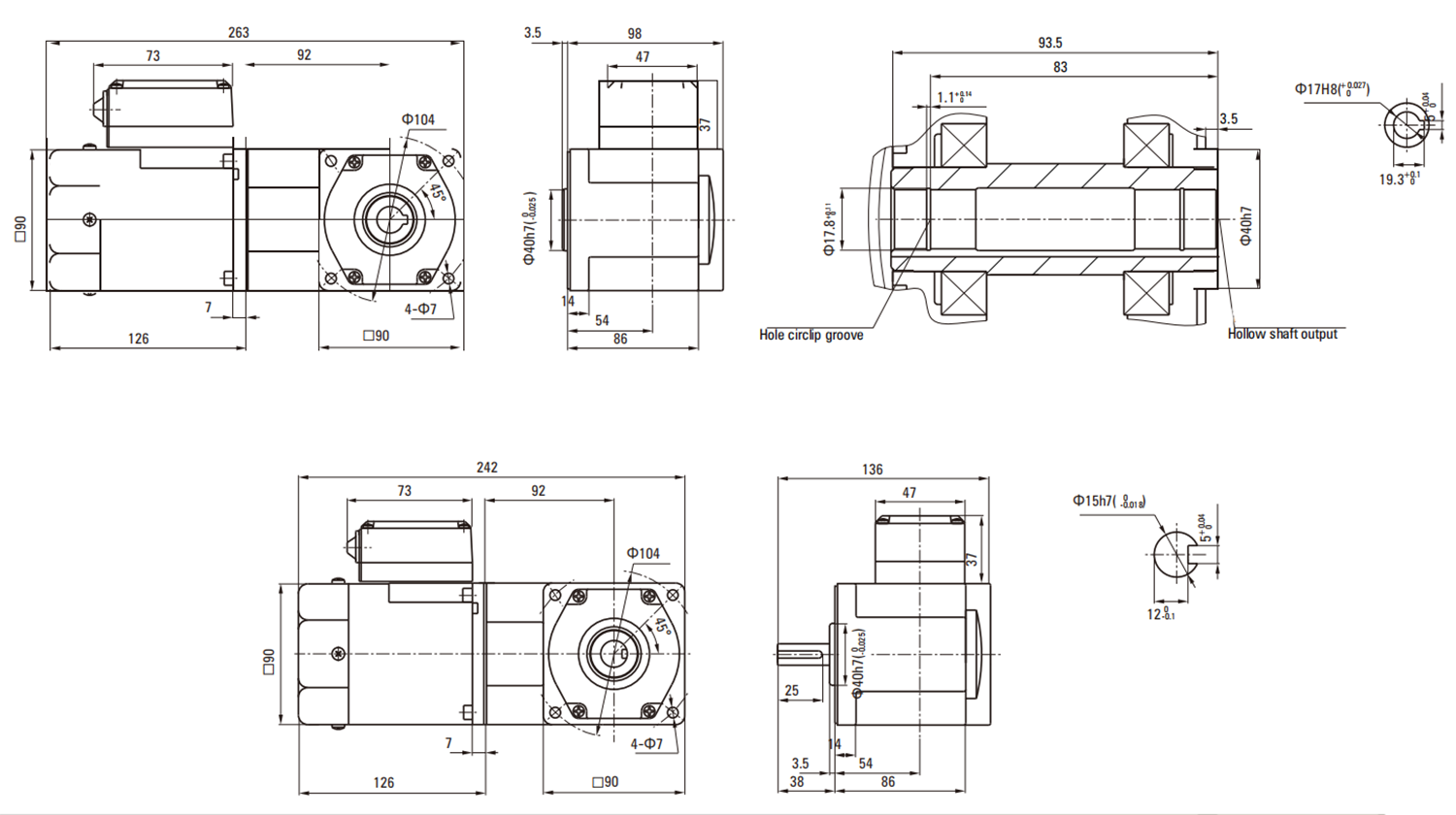

Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
5RK60GU-AF	5RK60GU-AFT	60	1ph 100	50	1.26	470	470	1250	25
				60	1.70		380	1550
5RK60GU-EF	5RK60GU-EFT	60	1ph 110	60	1.05	330	380	1550	15
			1ph 120			380
5RK60GU-CF	5RK60GU-CFT	60	1ph 220	50	0.55	420	470	1250	4.5
			1ph 230		0.60	460
5RK60GU-HF	5RK60GU-HFT	60	1ph 220	60	0.55	420	380	1550	4.5
			1ph 230		0.60	460

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
5RK60GU-AF□ 5RK6OGU-F口 5RK6OGU-CF□ 5RK6OGUHF□	5GU□RC 5GU□RT	Allowance Torque	50Hz	0.75	0.90	1.25	1.50	2.37	2.76	3.06	3.95	4.73	5.51	6.13	7.89	9.47	10.2	14.2	17.0	20.0	20.0	20.0	20.0	20.0	20.0
			50Hz	7.37	8.84	12.3	14.7	24.2	27.0	30.0	40.3	48.3	54.0	60.0	80.5	96.6	104	145	174	200	200	200	200	200	200
			60Hz-	0.63	0.75	1.04	1.25	1.91	2.30	2.55	3.18	3.82	4.59	5.11	6.36	7.64	8.25	11.5	13.7	17.2	20.0	20.0	20.0	20.0	20.0
			60Hz-	6.14	7.37	10.2	12.3	19.5	22.5	25.0	32.5	39.0	45.0	50.0	64.9	77.9	84.1	117	140	175	200	200	200	200	200

Lead Wiring Type

Description

The variable frequency drive reversible motor is a high-performance power unit designed for industrial automation and light to medium-sized mechanical transmission systems. It is specifically designed for applications requiring forward and reverse operation, adjustable speed, and stable torque output. This model has a rated power of 60W and supports a wide voltage input range of 110V–380V, making it compatible with various global power standards and facilitating deployment and application in multiple regions and scenarios. The motor features a compact design, making it easy to install in space-constrained equipment. It also boasts excellent heat dissipation and mechanical strength, providing reliable power for continuous operation and frequent start-stop cycles.
In terms of operational performance, the variable frequency drive reversible motor, combined with an optimized stator and rotor structure and precise winding design, enables smooth start-up, adjustable speed operation, and forward/reverse switching under inverter control, ensuring stable torque output across the low- to high-frequency range. This design effectively reduces the impact of mechanical vibration and shock on the equipment structure, making the motor suitable for various industrial applications such as conveyor systems, small lifting equipment, packaging machinery, sorting systems, and automated production lines. Its bidirectional operation capability allows for flexible adjustment of the working direction, improving production efficiency and process flexibility.
