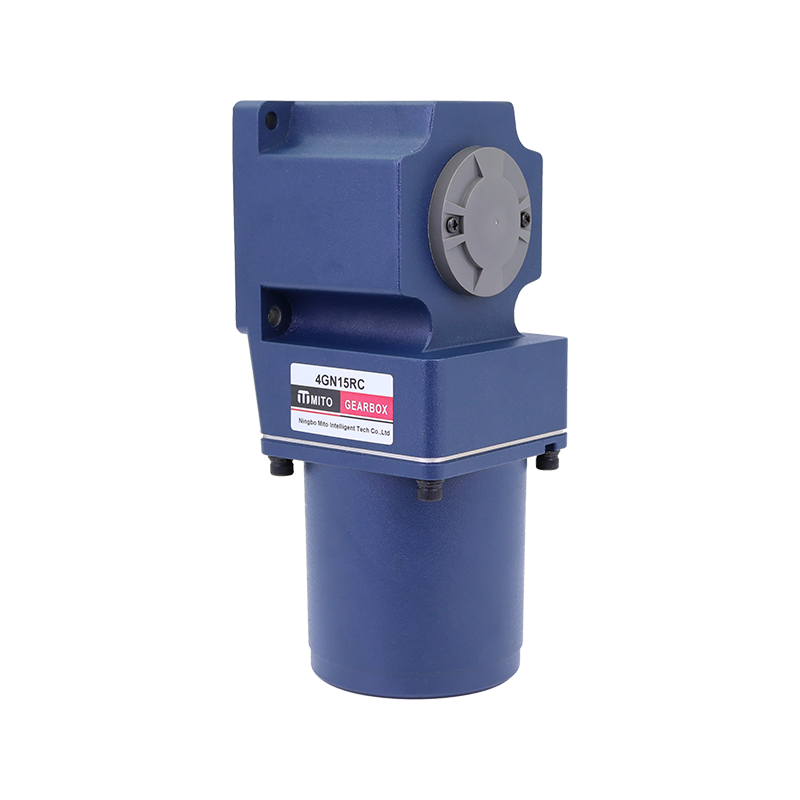

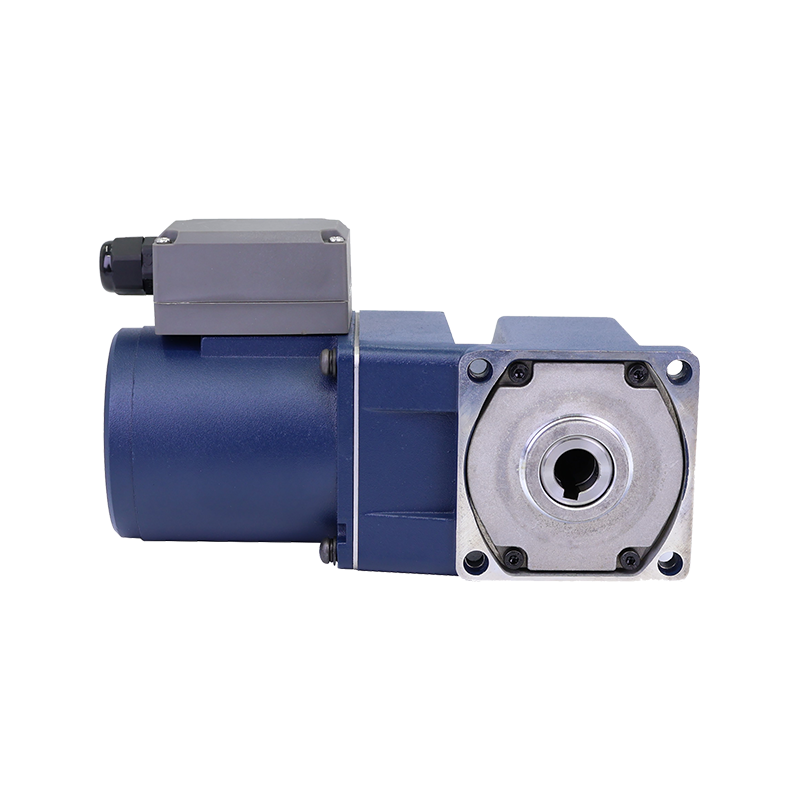

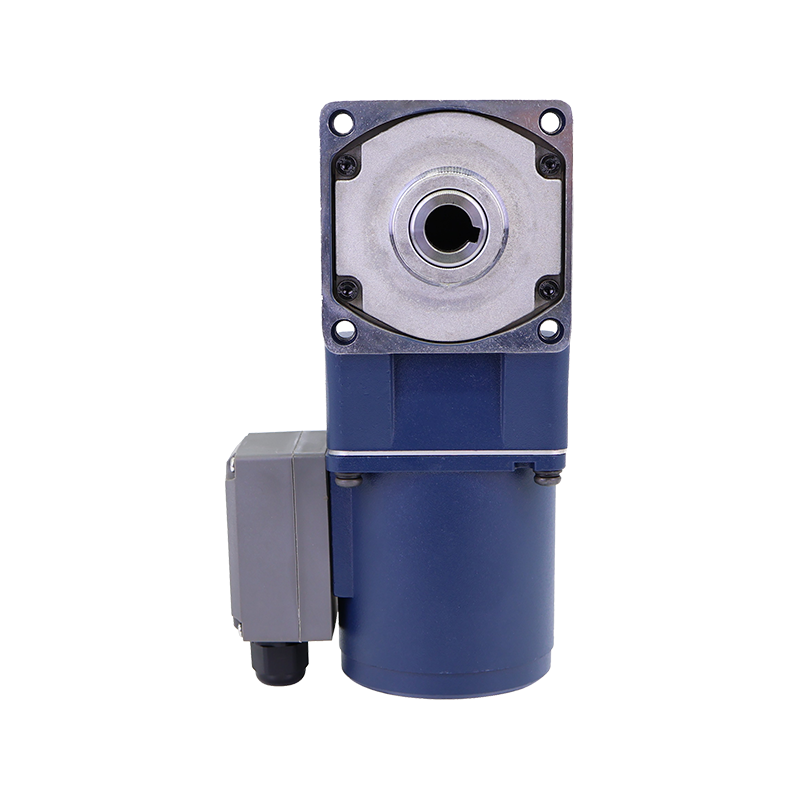

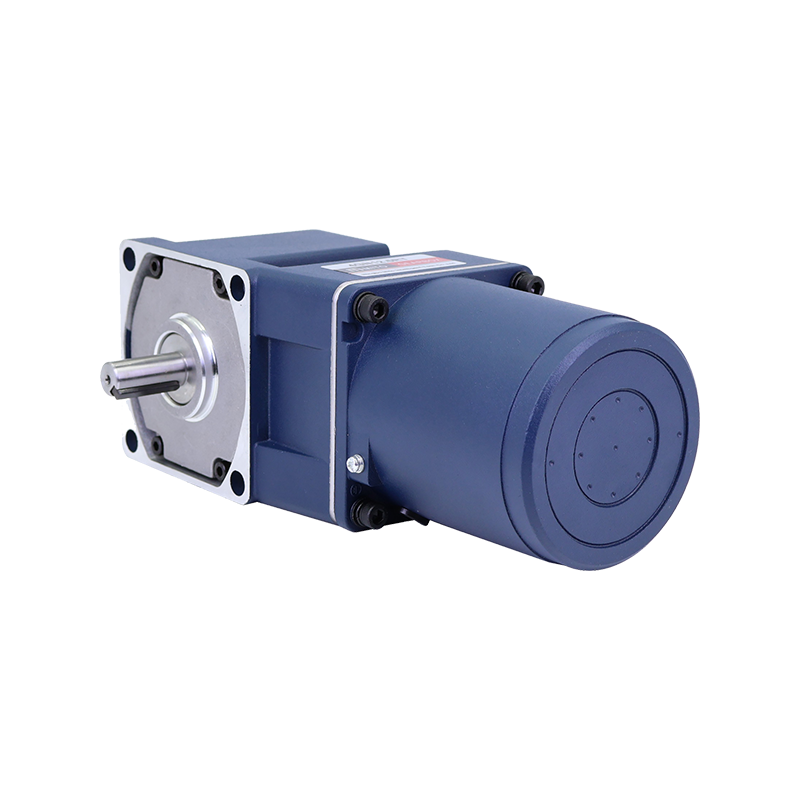

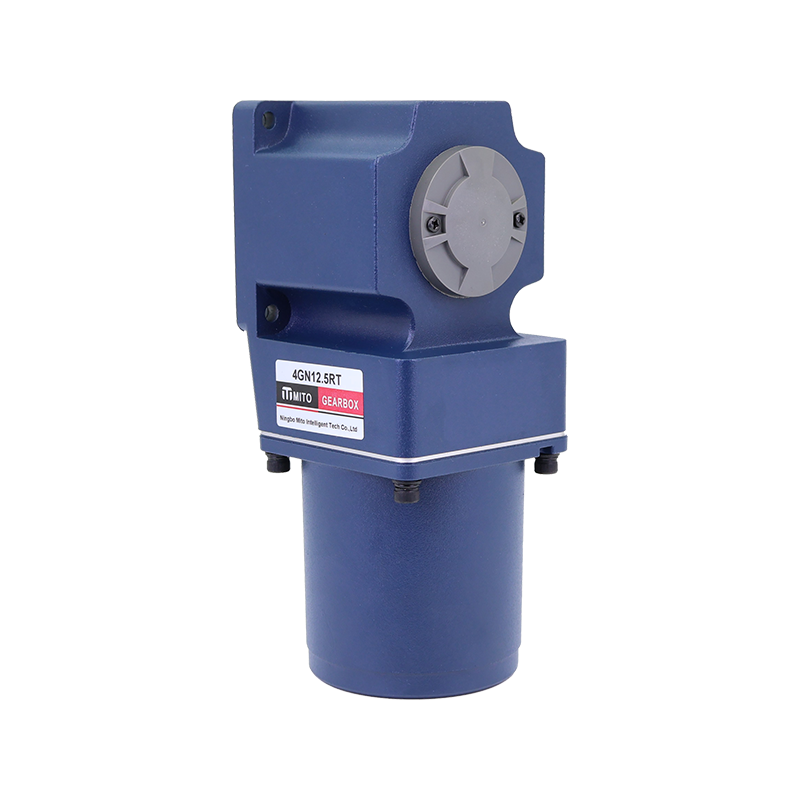

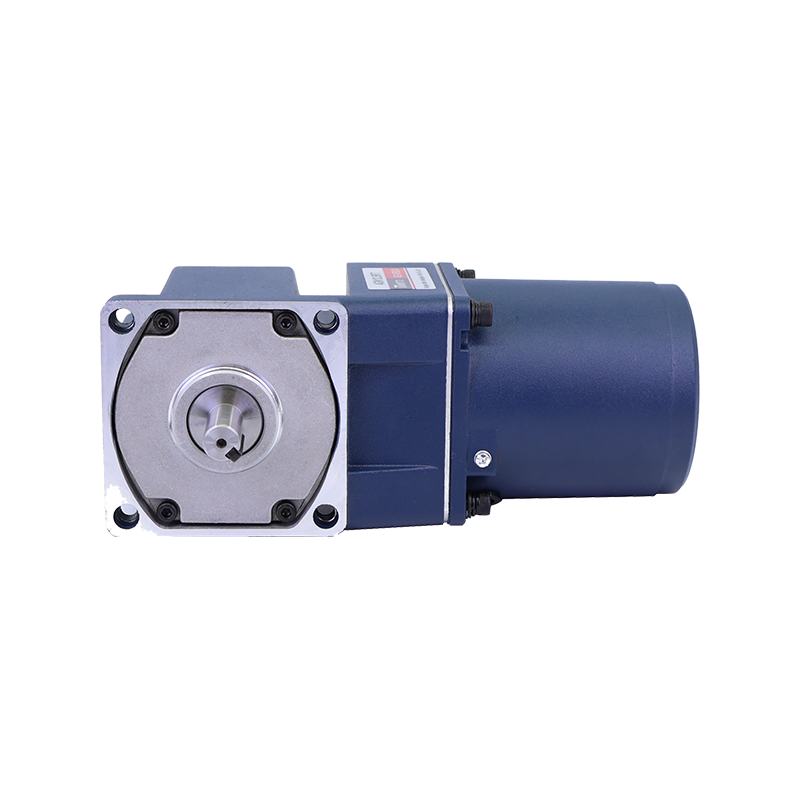

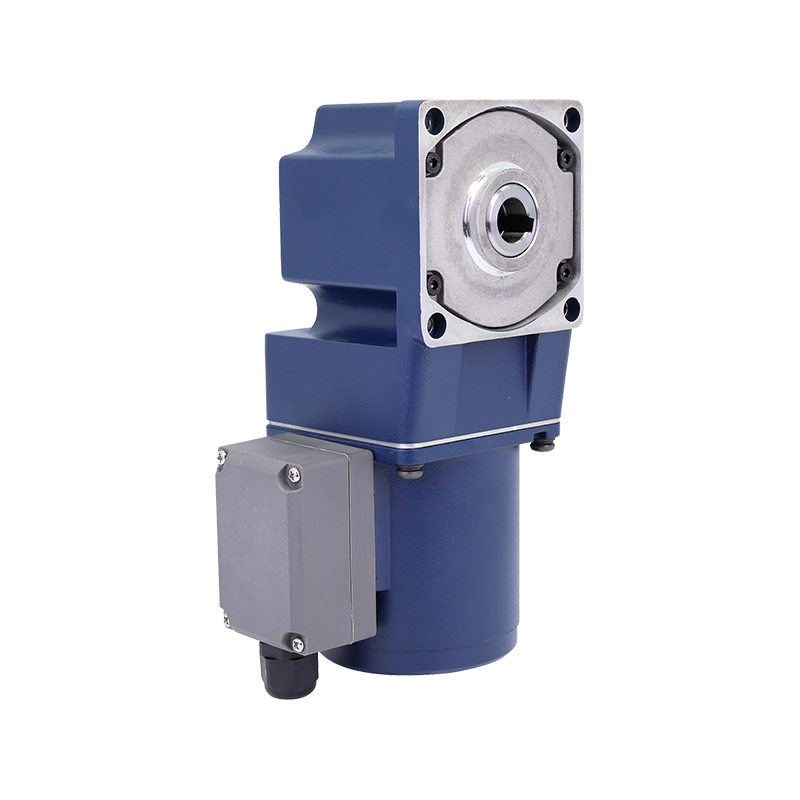

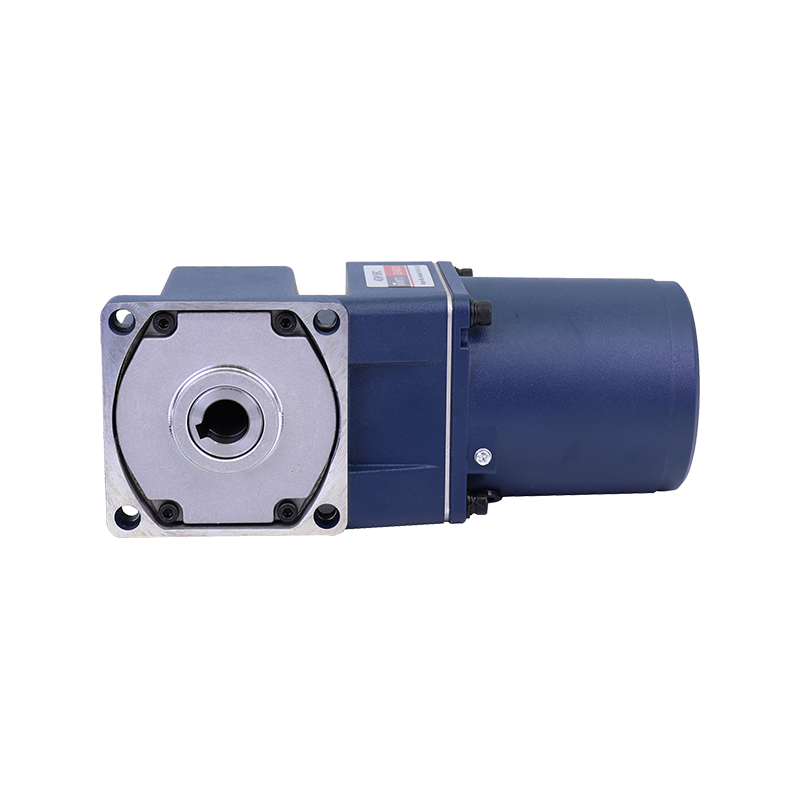

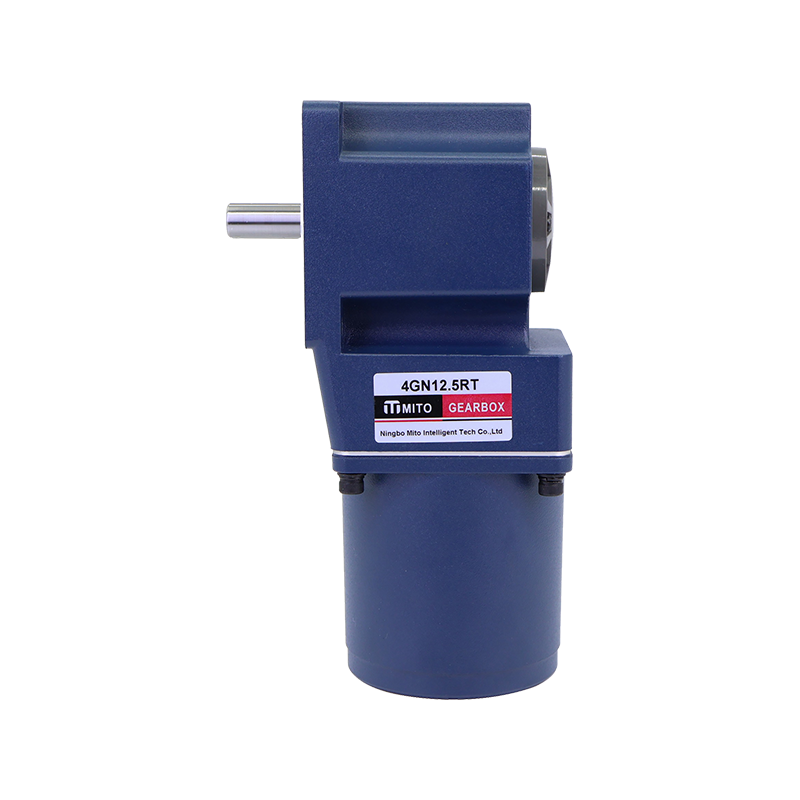

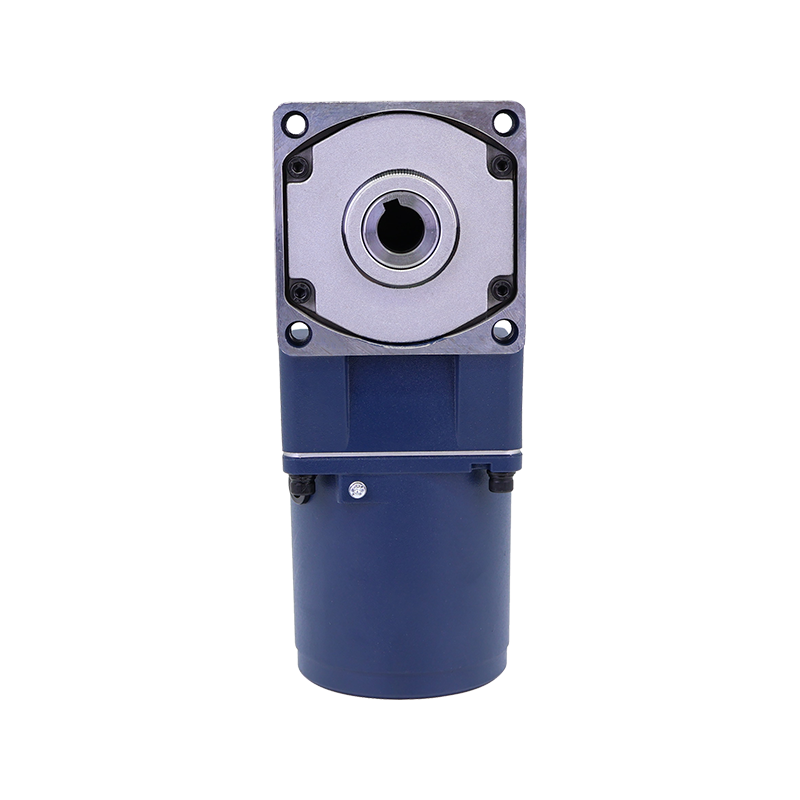

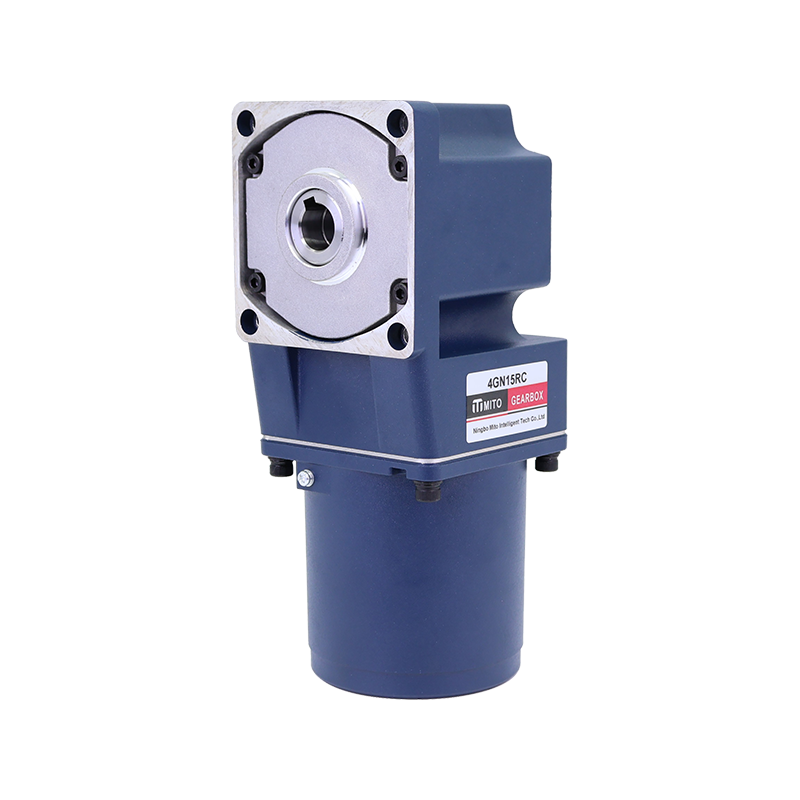

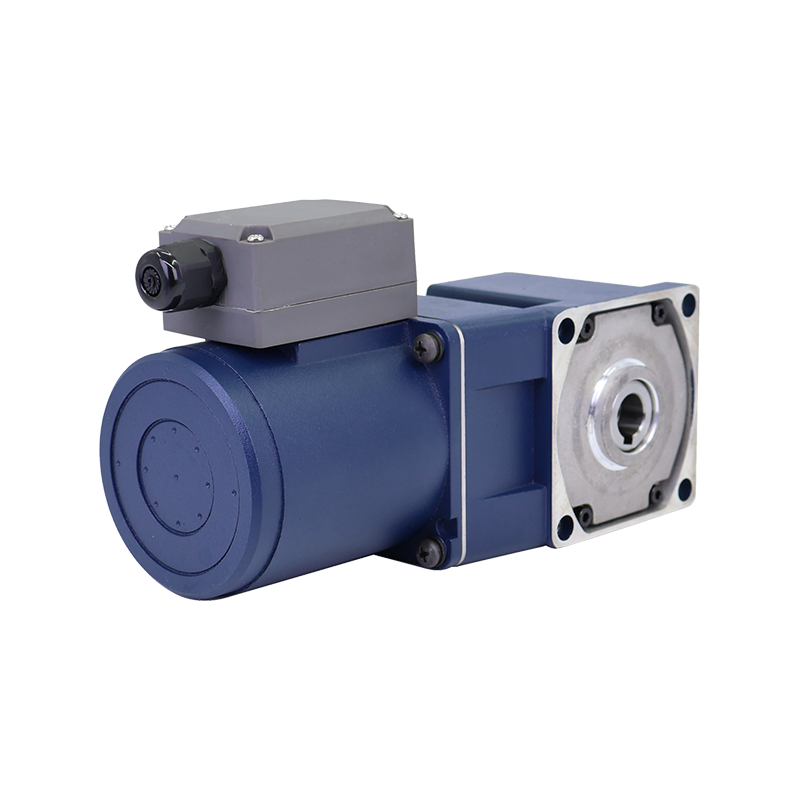

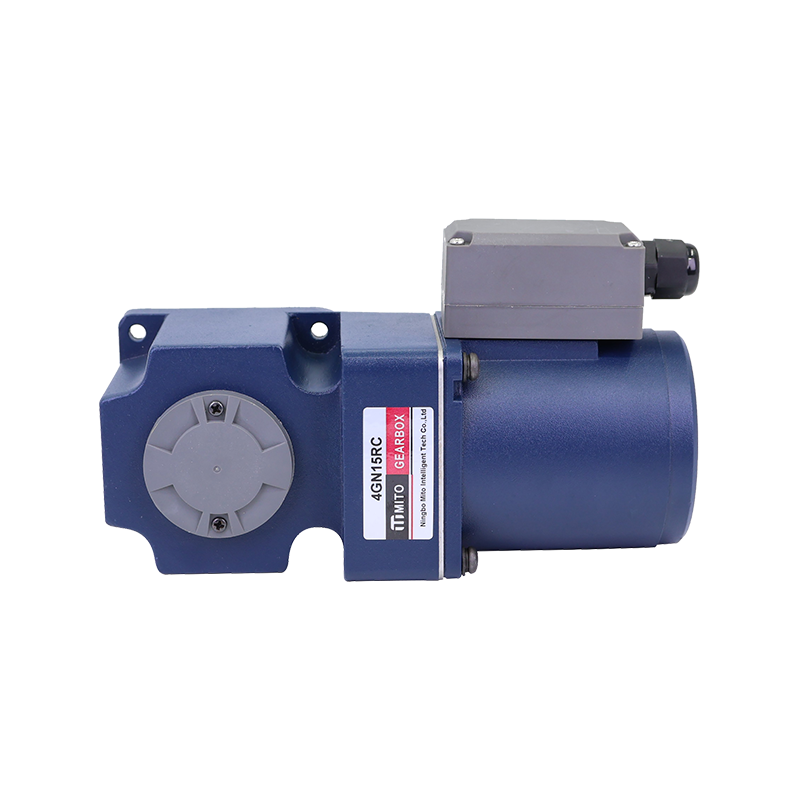

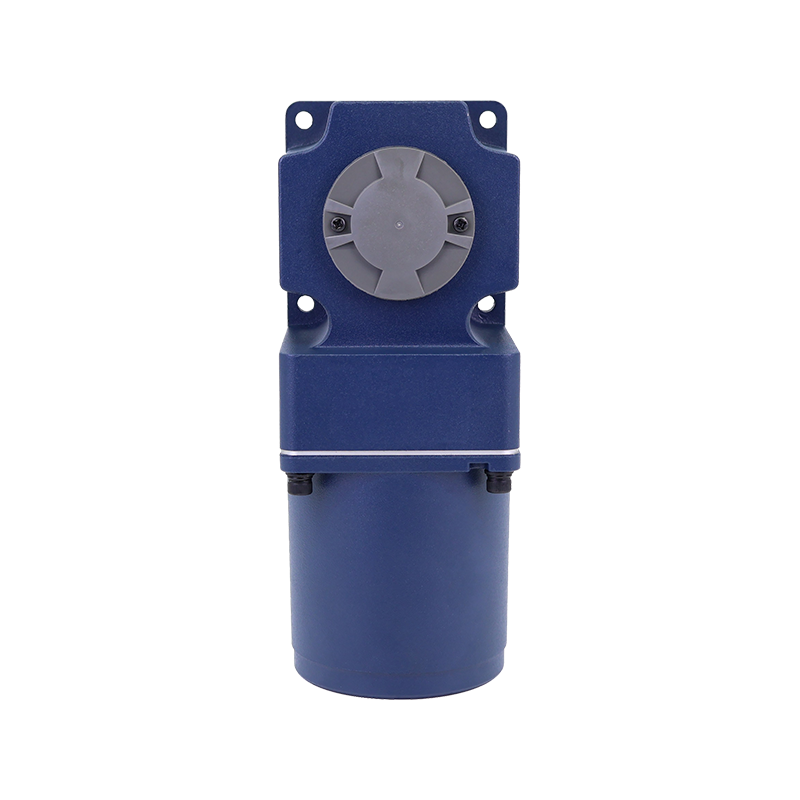

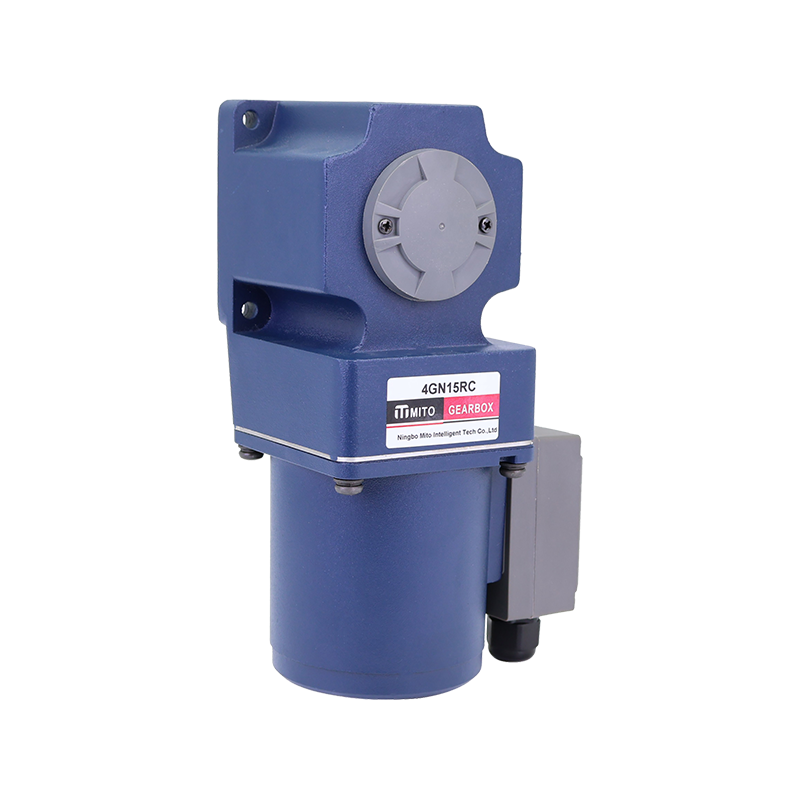

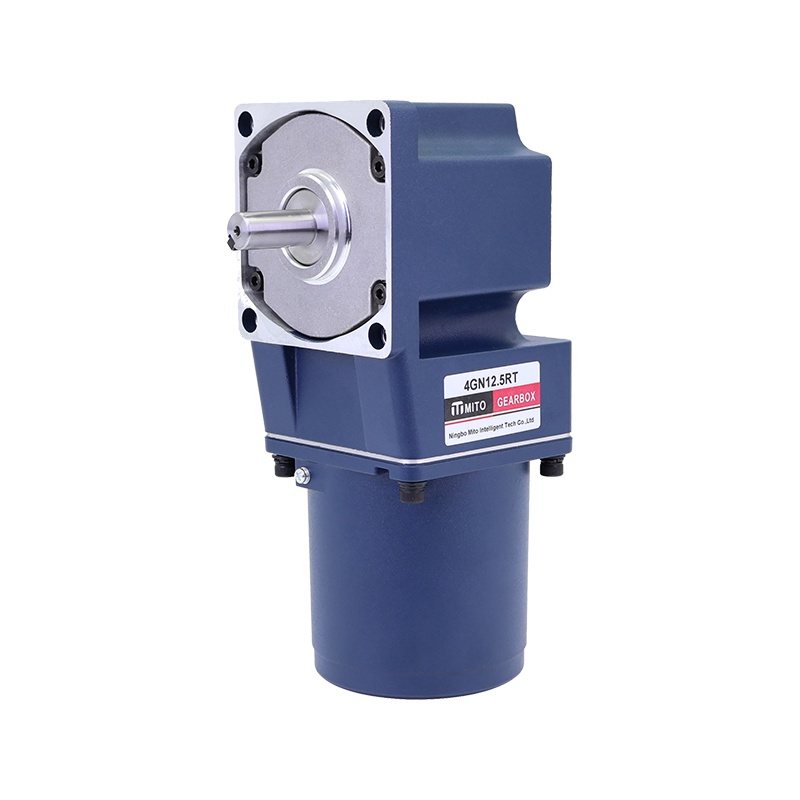

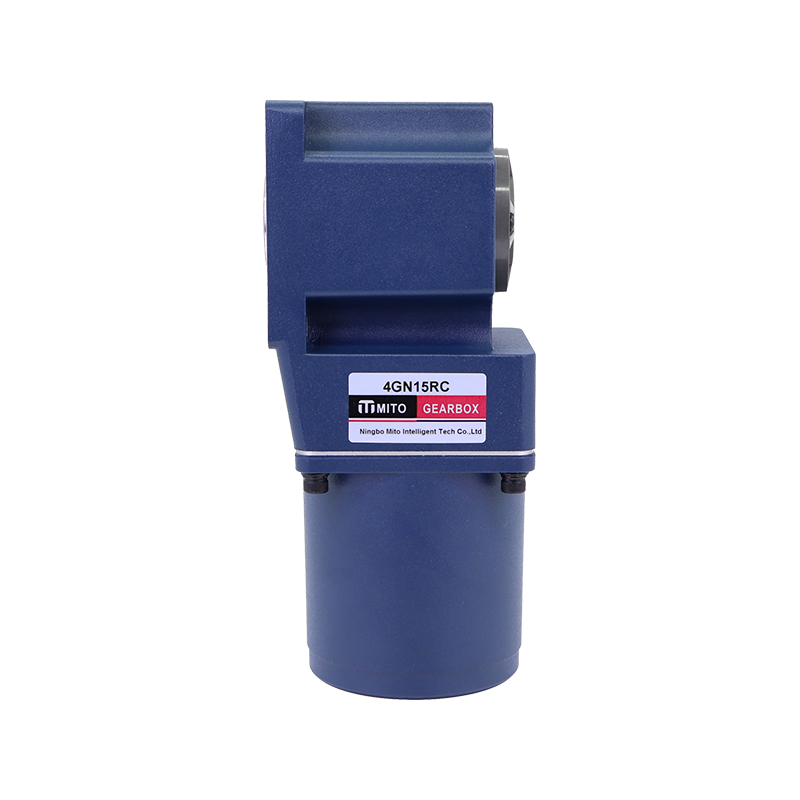

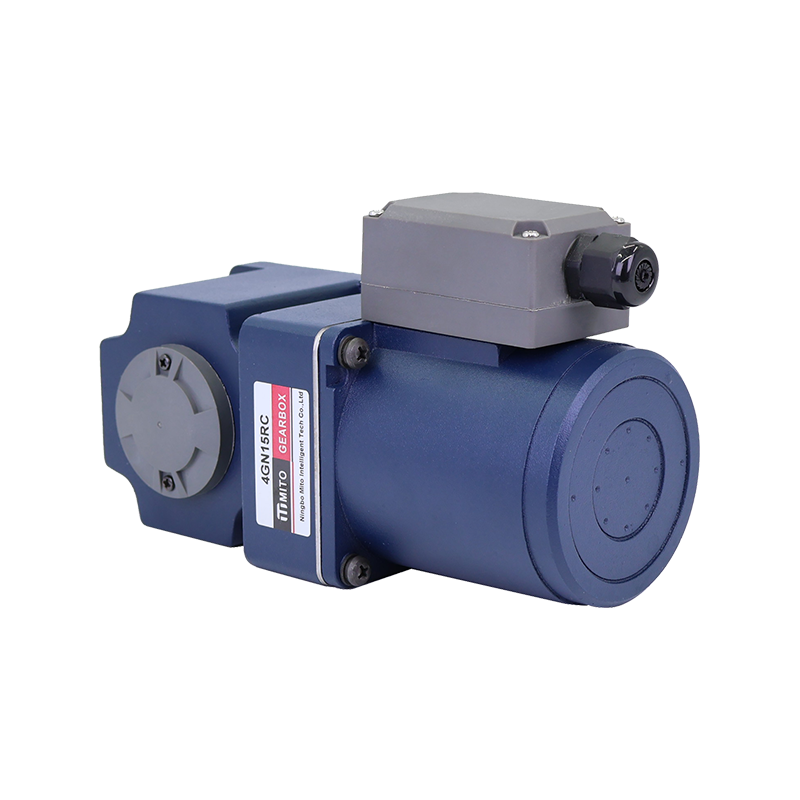

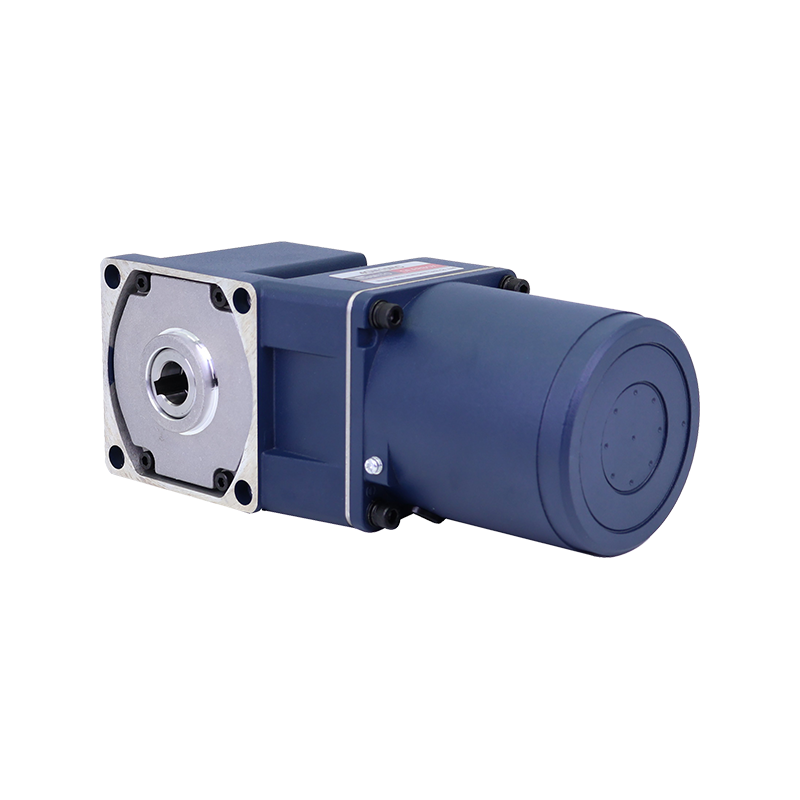

4RK 80mm 25W

Reversible Motor

Motor Type: 4RK

Power: 25W

Voltage: 110-380V

Gearbox Ratio: 3-180K

Motor Parameter Table

Model ·Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF

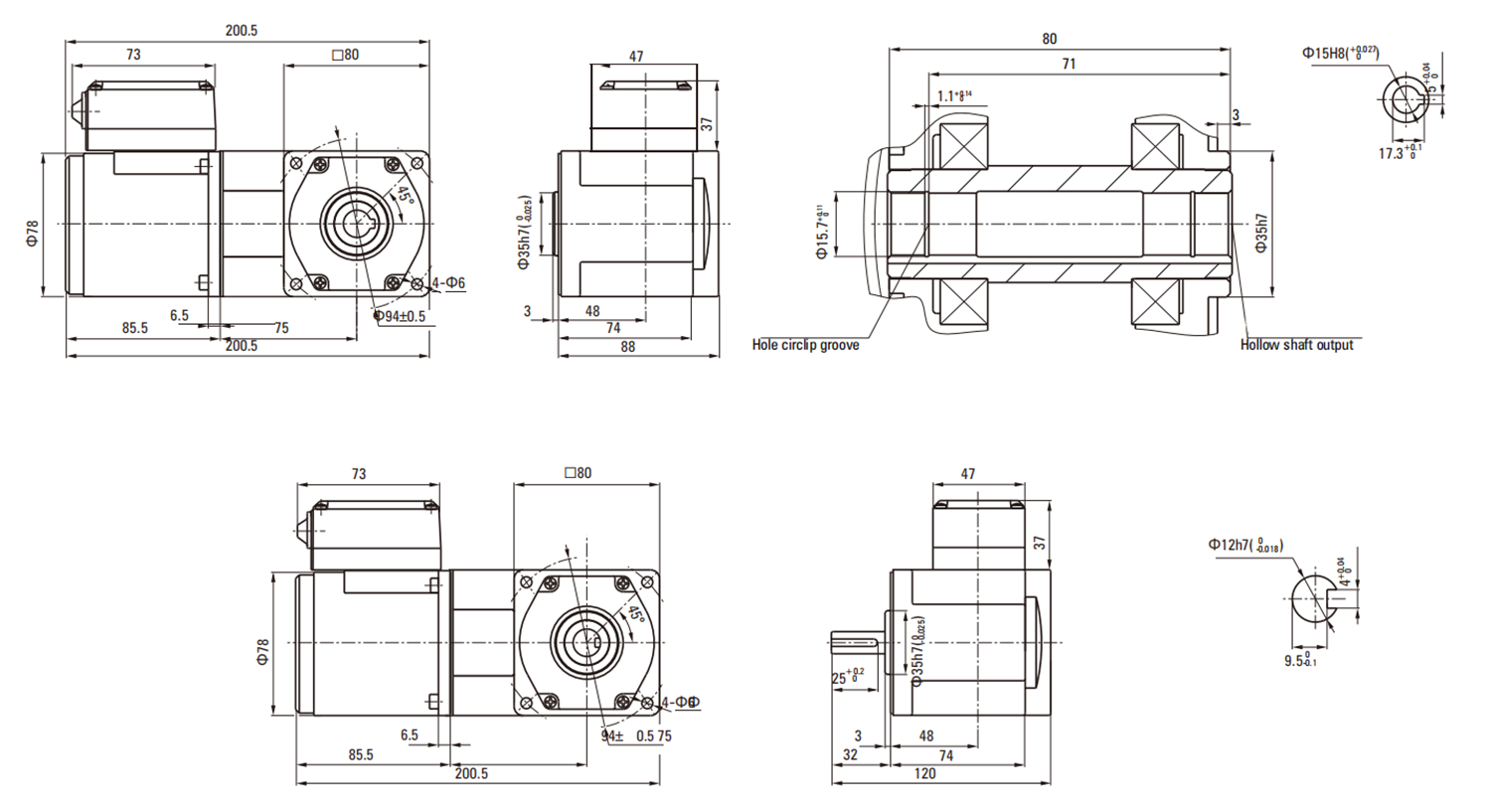

Lead Wire Type Dimensions①	Terminal Box Type Dimensions②
4RK25GN-A	4RK25GN-AT	25	1ph 100	50	0.59	160	200	1250	10
				60	0.69	140	165	1550
4RK25GN-E	4RK25GN-ET	25	1ph 110	60	0.45	140	165	1550	8.0
			1ph 120		0.50
4RK25GN-C	4RK25GN-CT	25	1ph 220	50	0.29	140	200	1250	2.2
			1ph 230		0.30	160
4RK25GN-H	4RK25GN-HT	25	1ph 220	60	0.35	140	165	1550	2.2
			1ph 230

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	5	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	300	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	360	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
4RK25GN-A□ 4RK25GN-E□ 4RK25GN-C□ 4RK25GN-H□	4GN□RC 4GN□RT	Allowance Torque	50Hz	0.31	0.52	0.99	1.04	1.16	1.64	1.97	2.09	2.32	3.29	3.95	4.73	6.58	7.10	8.00	8.00	8.00	8.00	8.00	8.00
			50Hz	3.07	5.12	10.1	10.2	11.37	16.8	20.1	20.5	22.7	33.5	40.3	48.3	67.1	72.5	80.0	80.0	80.0	80.0	80.0	80.0
			60Hz	0.26	0.44	0.80	0.87	0.97	1.33	1.59	1.74	1.93	2.65	3.18	3.82	5.30	5.73	7.16	8.00	8.00	8.00	8.00	8.00
			60Hz	2.56	4.26	8.12	8.53	9.48	13.5	16.2	17.1	19.0	27.1	32.5	39.0	54.1	58.4	73.0	80.0	80.0	80.0	80.0	80.0

Lead Wiring Type

Description

The aluminum-housing reversible motor is a high-performance power unit designed for industrial automation and light-to-medium mechanical transmission applications, specifically developed for operations requiring bidirectional rotation and reliable torque output. This model features a rated power of 25W and supports a wide voltage input range of 110V–380V, making it compatible with power standards in different regions and facilitating flexible deployment across global markets. The motor’s lightweight aluminum alloy housing provides excellent heat dissipation and corrosion resistance, while its compact structure allows easy installation in space-constrained equipment.
The motor incorporates an optimized stator-rotor design to ensure smooth and stable output during forward and reverse operation as well as continuous running, reducing mechanical vibration and impact on connected equipment. It delivers consistent torque at low, medium, and light-load operating conditions, making it suitable for conveyor systems, small lifting devices, packaging machinery, and automated production lines. The bidirectional capability enables flexible adjustment of operational direction, enhancing production efficiency and operational flexibility.
In terms of transmission compatibility, the aluminum-housing reversible motor supports gearboxes with a reduction ratio range of 3–180K, allowing flexible adjustment of output speed and torque according to actual load requirements. By properly matching the gear reduction system, the motor can provide reliable torque output in a compact footprint, meeting the demands of light-to-medium industrial equipment for continuous, stable, and efficient power delivery.
