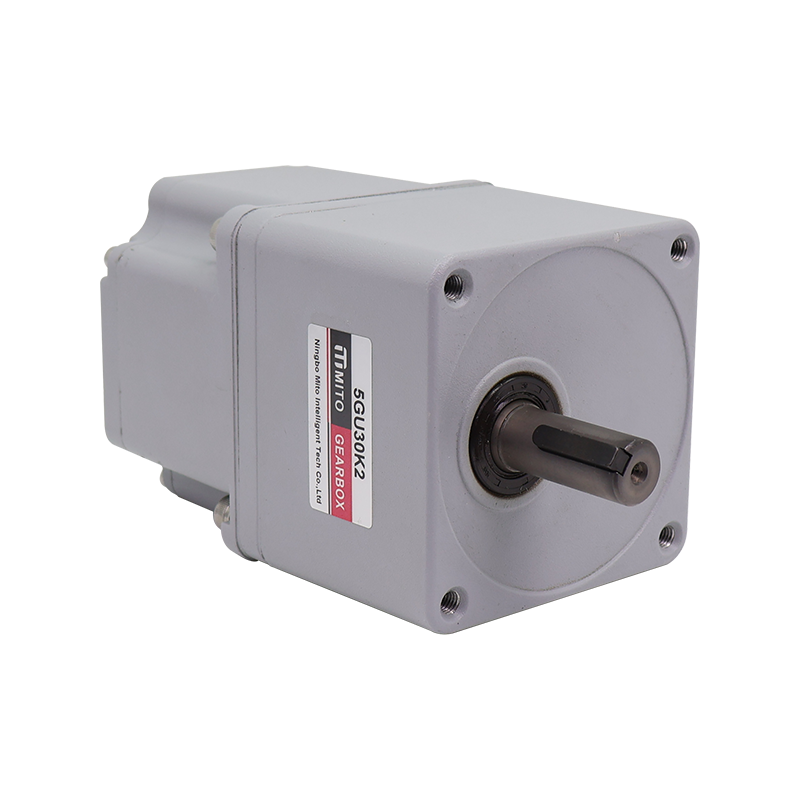

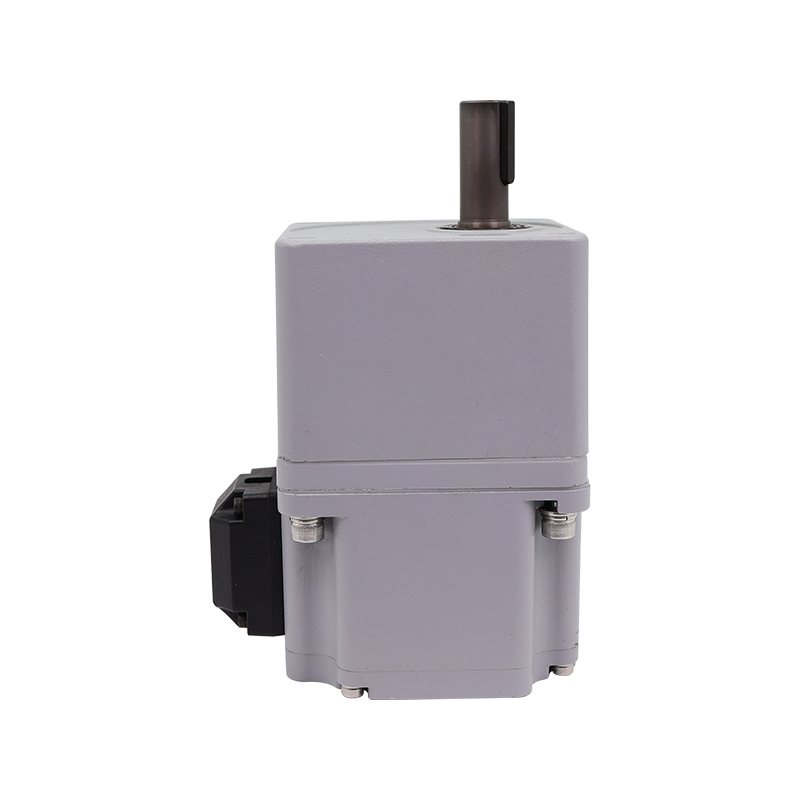

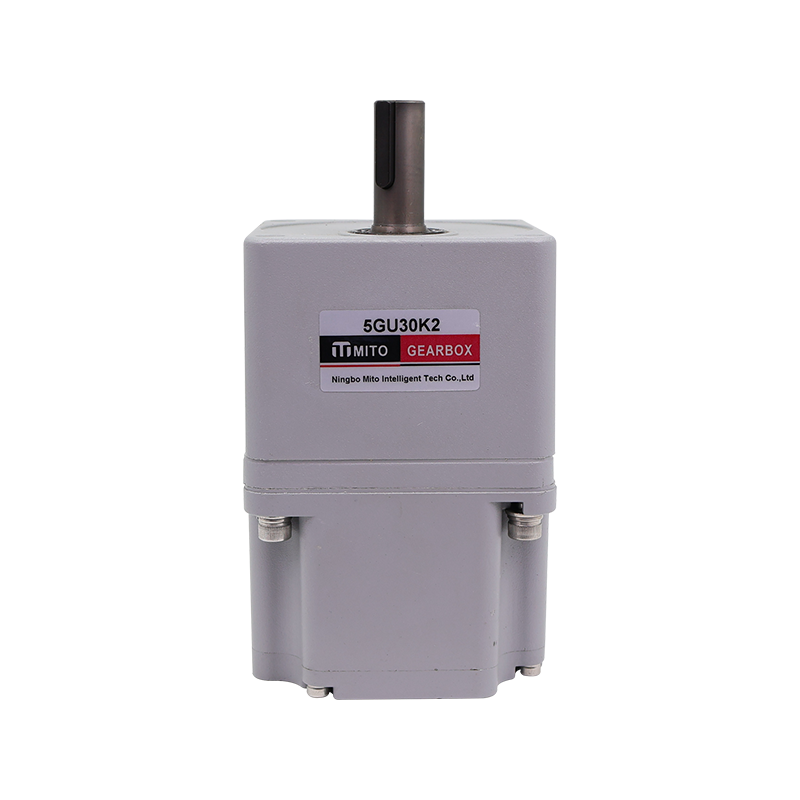

M5BLD 90mm 120W&200W

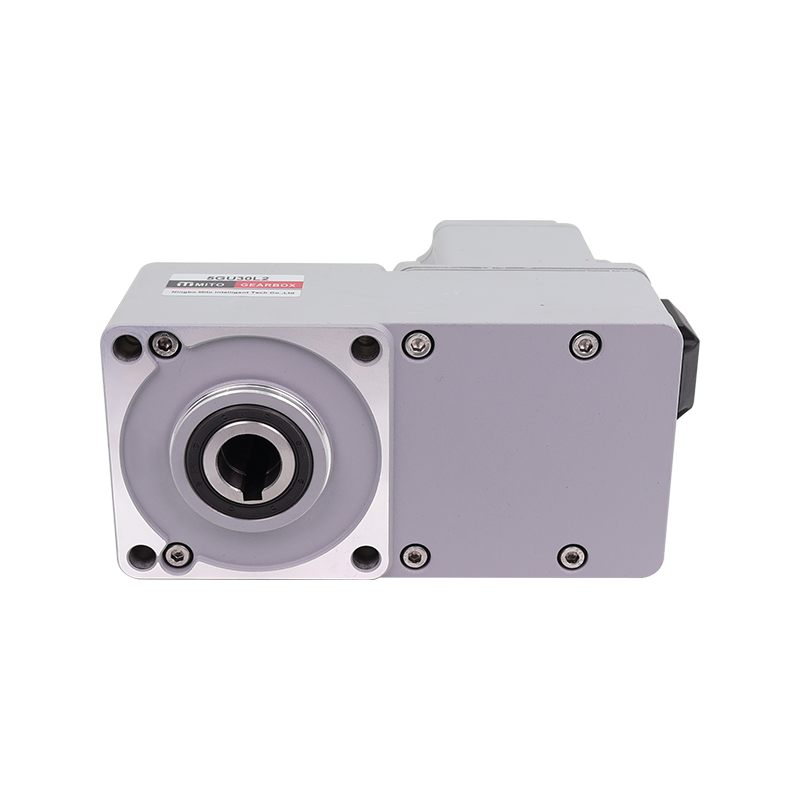

K2L2 Series Brushless DC Gear Motor

Motor Type: M5BLD

Power: 120W&200W

Voltage: 220V

Gearbox Ratio: 5-100K

Motor Parameter Table

 Model number

Motor type

Type of reducer

Ratio

M5BLD120-220GK-20S/5GN□K2

M5BLD120-220GK-20S

5GN□K2

5~100

Allowance Torque

Output power

Ratio
Motor speed

10

15

20

30

50

100

120W

100~2000rpm

2.32

4.64

6.27

7.52

11.28

18.80

30.00

Lead Wiring Type

Description
