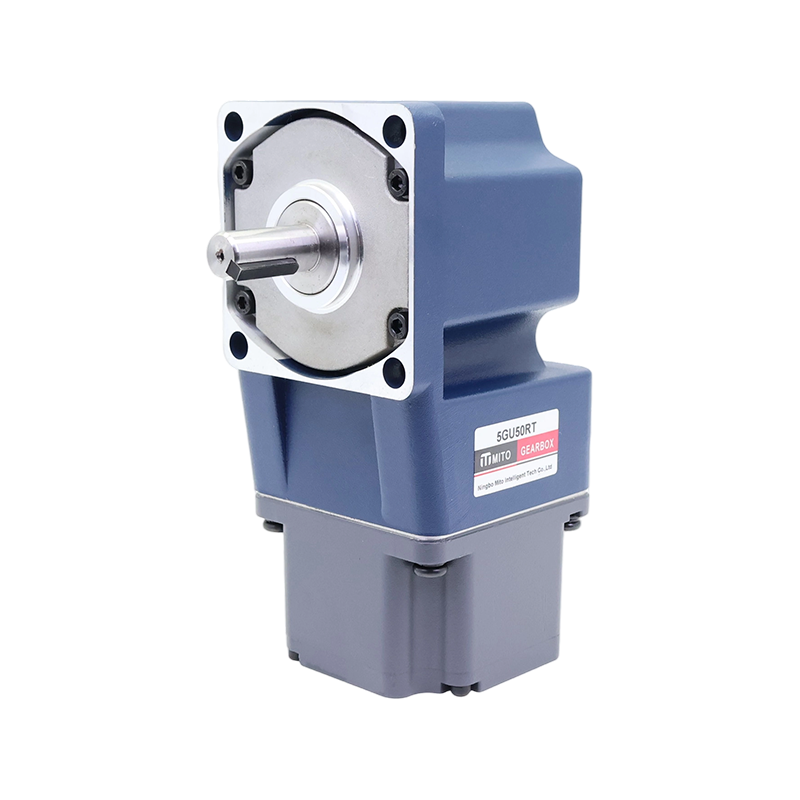

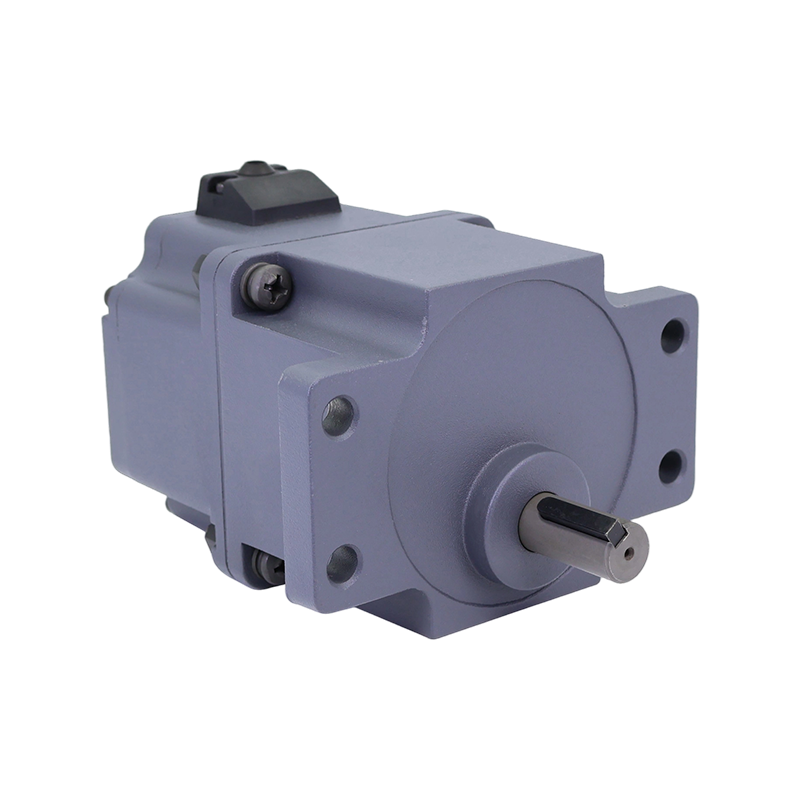

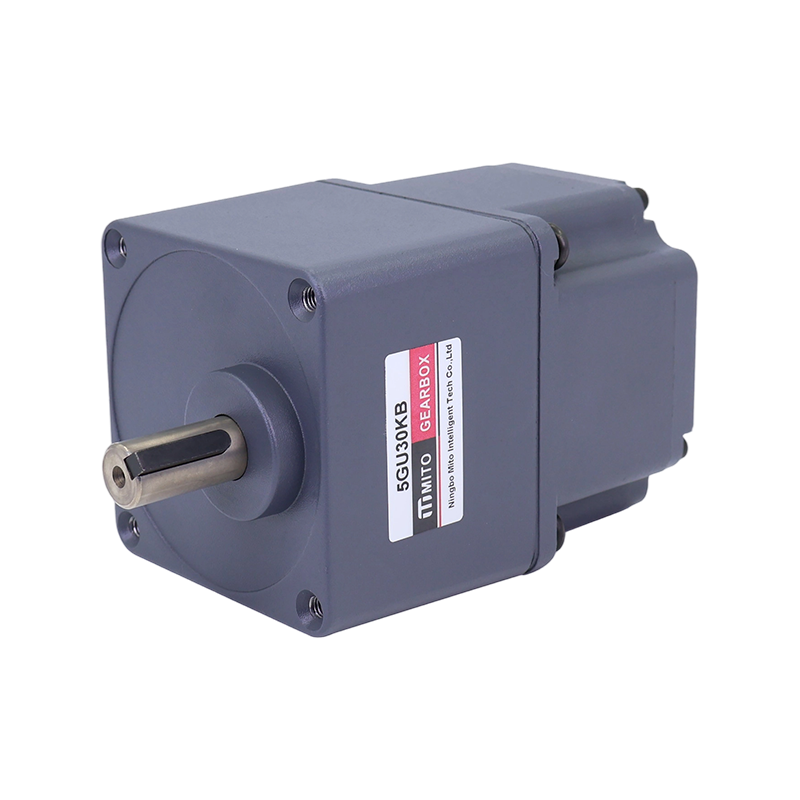

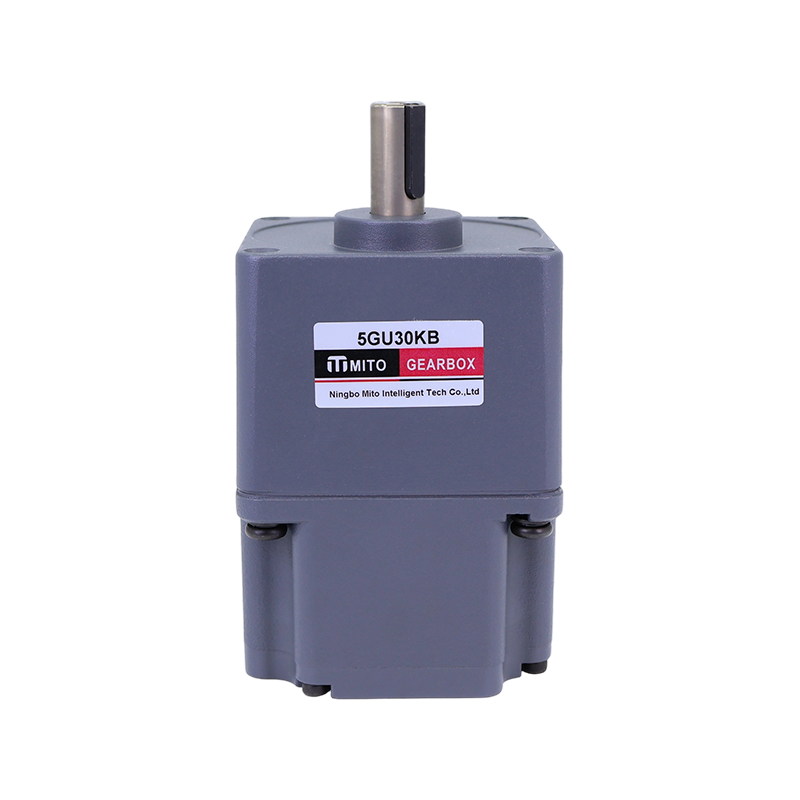

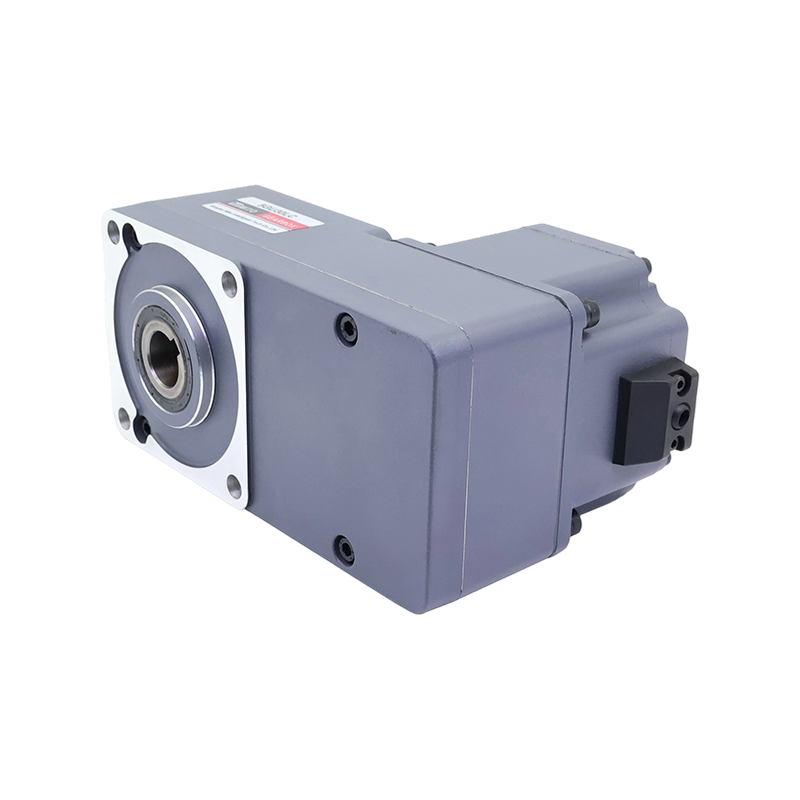

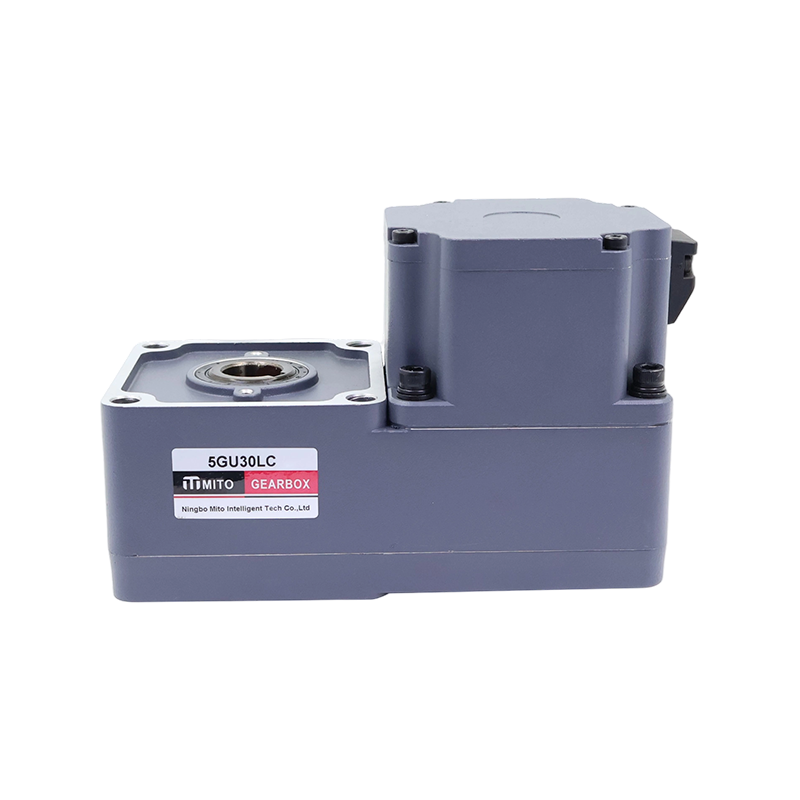

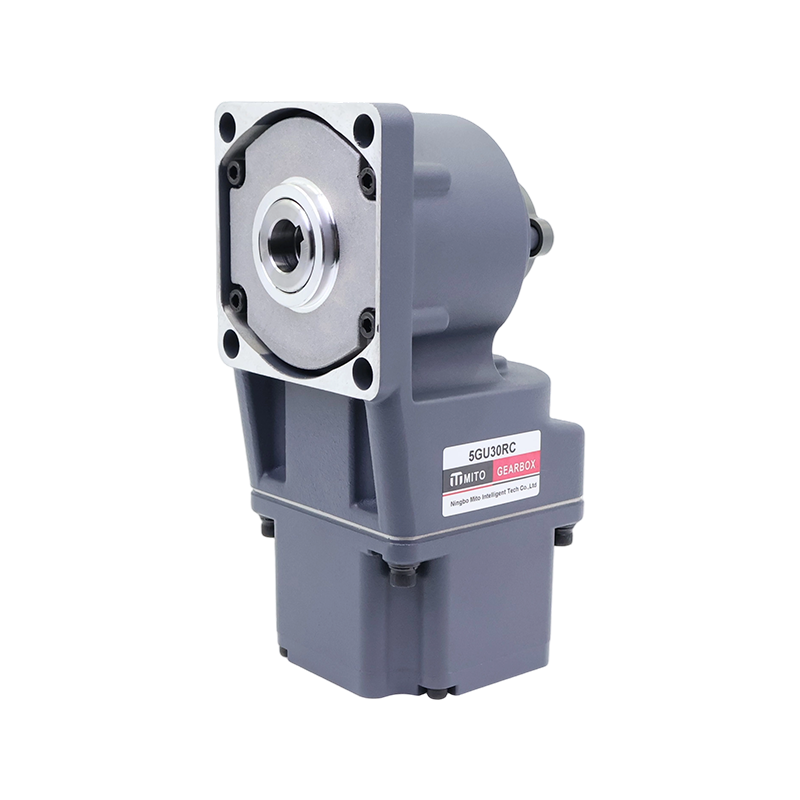

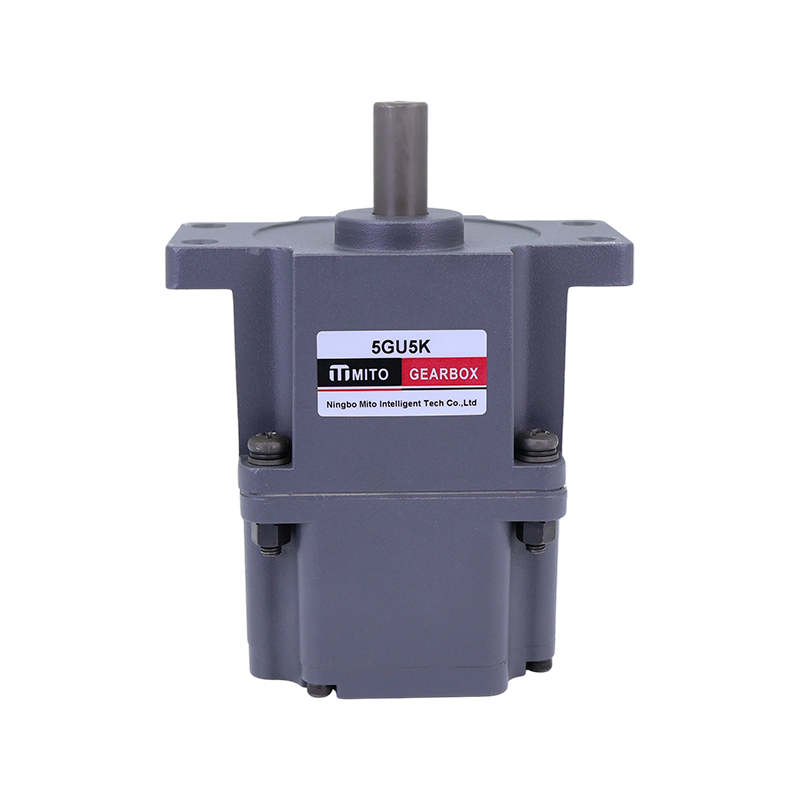

M5BLD 90mm 120W

K Series BLDC Gear Motor

Motor Type: M5BLD

Power: 120W

Voltage: 24-48V (Low Voltage)
              220V (High Voltage)

Gearbox Ratio: 3-200K (In-line)
                         5-200K (L Type)
                         7.5-180K(Right Angle)

PREV：M55BLD 86mm 200-750WNEXT：M5BLD 90mm 60W GN Shaft
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

Low Voltage Motor Parameters

Model

Rated power

W

Voltage

V

Rated current

A

Starting torque

N.m

Rated torque

N.m

Rated speed
N.m

Grade protection
IP

M5BLD60-24GU-30S

60

24

3.5

0.382

0.191

3000

20

M5BLD60-48GU-30S

60

48

1.8

0.382

0.191

3000

20

M5BLD90-24GU-30S

90

24

5.2

0.573

0.286

3000

20

M5BLD90-48GU-30S

90

48

2.6

0.573

0.286

3000

20

M5BLD120-24GU-30S

120

24

7

0.764

0.382

3000

20

M5BLD120-48GU-30S

120

48

3.2

0.764

0.382

3000

20

High Voltage Motor Parameters

Model

Rated power

W

Voltage

V

Rated current

A

Starting torque

N.m

Rated torque

N.m

Rated speed
N.m

Grade protection
IP

M5BLD60-220GU-30S

60

220

0.5

0.382

0.191

3000

20

M5BLD90-220GU-30S

90

220

0.8

0.573

0.286

3000

20

M5BLD120-220GU-30S

120

220

1.3

0.764

0.382

3000

20

Allowance Torque

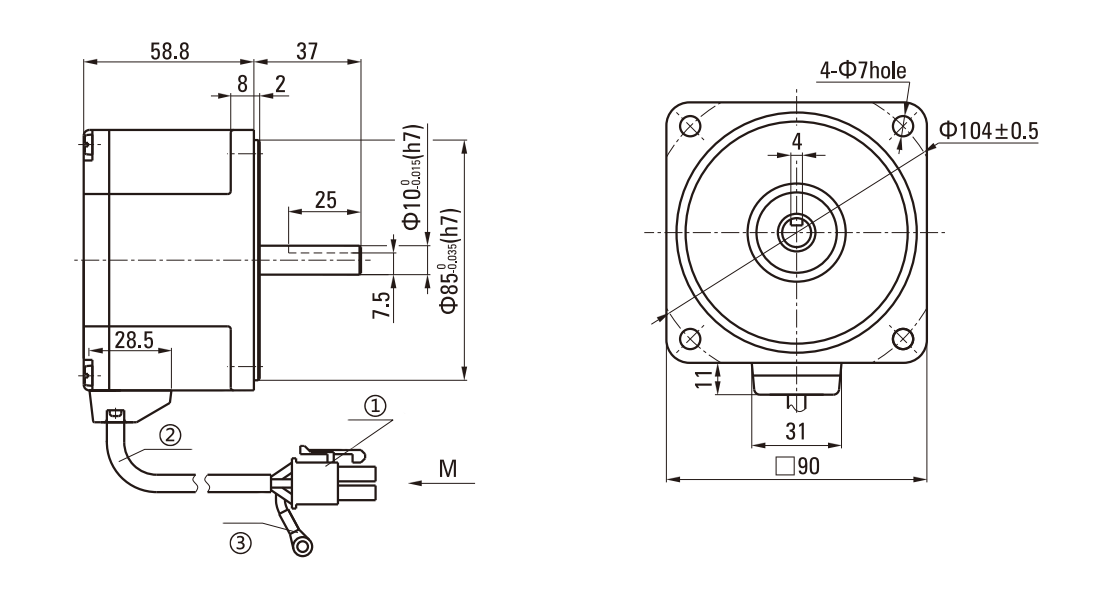

Lead Wiring Type

①Connector: 5557-8R/10R (MOLEX)

②Lead wire length 300mm

③Round terminal: SRA-21T-4 (Low ground)
