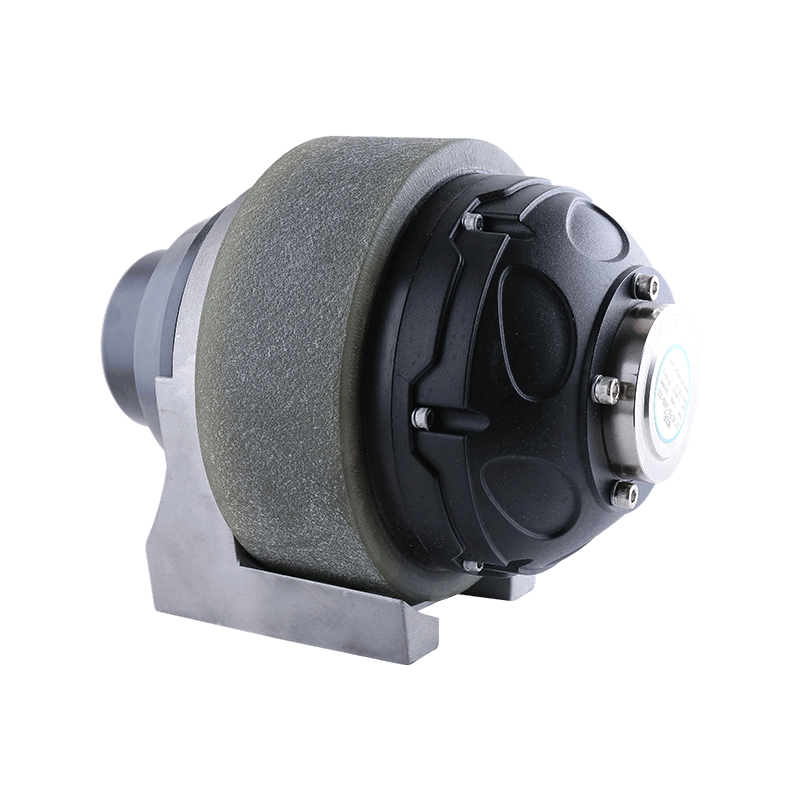

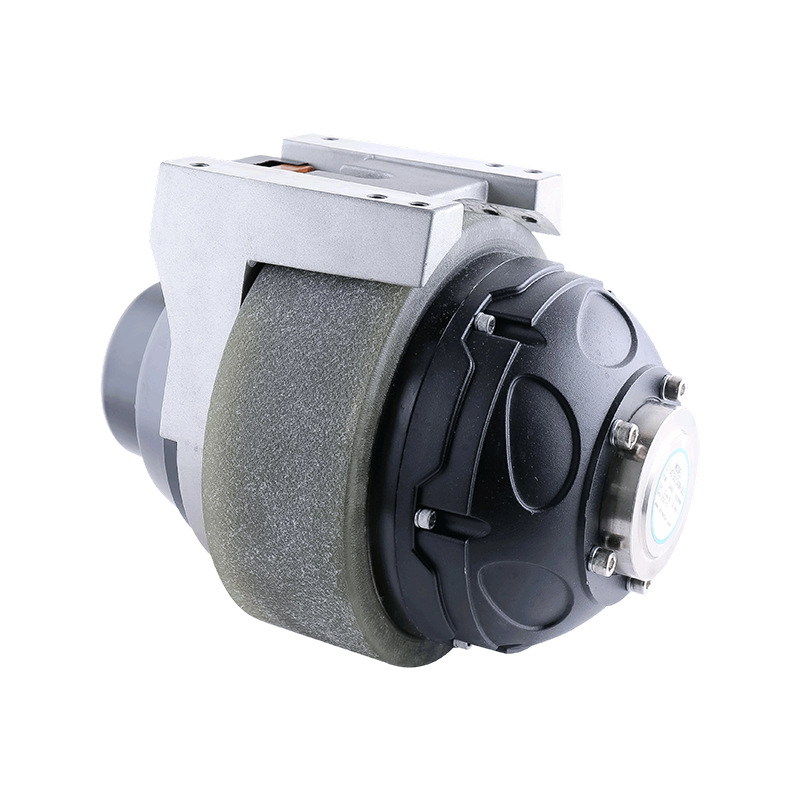

Motor Type: Steering Wheel
Voltage: 36V DC&24V DC
Power: 750W
|
Type |
Z114D750-36GN-30S/Z114D-750-24GN-30S | Protection grade | IP20 |
|
Rated voltage |
36V DC/24V DC | Reducer model | ZHX-250-001 |
|
Rated power |
750W | Reduction ratio | 22K |
|
Rated current |
28A/42A±10% | Brake voltage | 36V DC/24V DC |
|
Rated speed |
3000rpm±10% | Brake torque | 6N.m/8N.m |
|
Rated torque |
2.39N.m | Ambient temperature | -10℃~+40℃ |
|
Noload current |
≤5A/7.5A | Noise | <60dB(L=100cm) |
|
Noload speed |
3500rpm±10% | Wire diagram view A Drive wheel rotation direction |
![]() |
|
Work duty |
S2(45min) | ||
|
Insulation resistance |
>20MΩ | ||
|
Brush life |
1200h | ||
|
Electrical strength |
660V/S | ||
|
Insulation class |
B |
