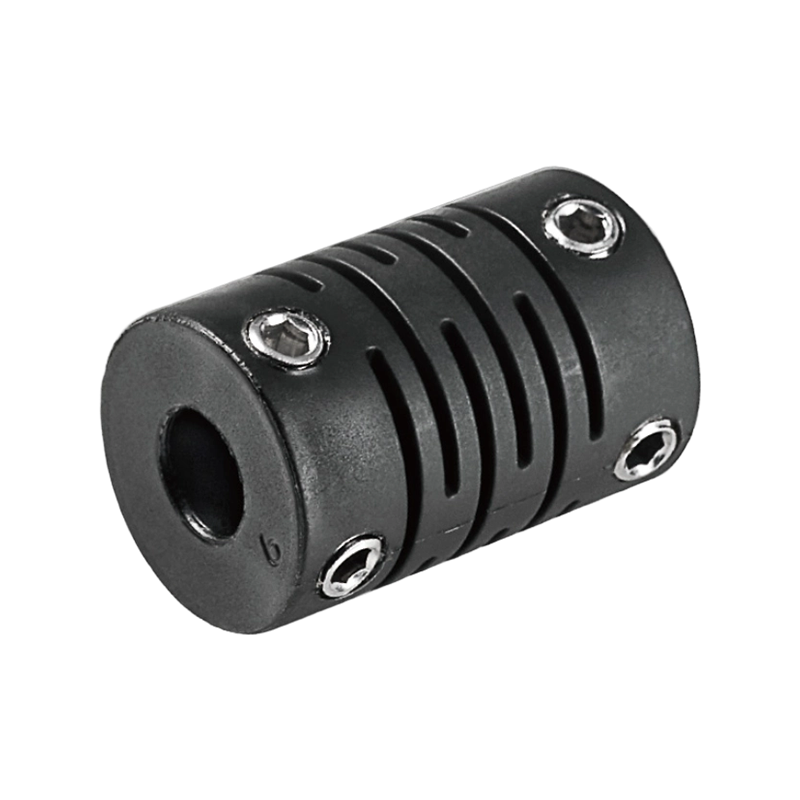

CIS Plastic encoder special series

Coupling

Features

Dedicated Encoder.

Cost-effective.

The overalluse of supertough rubber, good flexibility,  oil resistance, oxidation.

PREV：CFZ Plum flower expansion sets seriesNEXT：CB 8 Fonts encoder-specific series
Contact Us Data Sheet Download 3D Mode Download

Motor Parameter Table

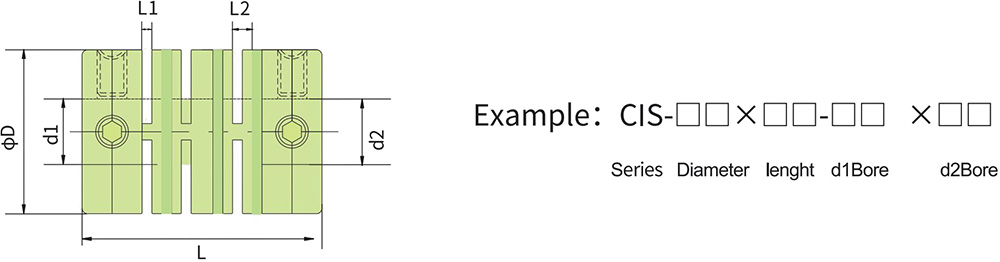

Dimensions (Unit): mm

Model

d1, d2, Bore

ØD

L

L1

L2

F

M

Wrench Torque(N ·M)

CIS-13×23

4

Ø13

23

0.8

2.1

2.675

4-M4×5

1.5

CIS-15×23

6

Ø15

23

0.8

2.1

2.675

4-M4×5

1.5

Allowance Torque

Specifications

Model

Rated torque(N ·M)

Allow Radial direction(mm)

Allow angle(°)

Allow Axis(mm)

Maximum speed(rpm)

Static torsional siffness(N ·Mrad)

Moment of inertia(kg ·M²)

Flexible colloidal material

Weigh(g)

CIS-13×23

0.6

0.2

2.5

±0.2

6000

10

  0.8×10⁻⁷

Super tough rubber

2.8

CIS-15×23

0.8

0.2

2.5

±0.2

6000

12

1.0×10⁻⁶

4

Note: The above technical parameters are measured based on the maximum aperture specification.
