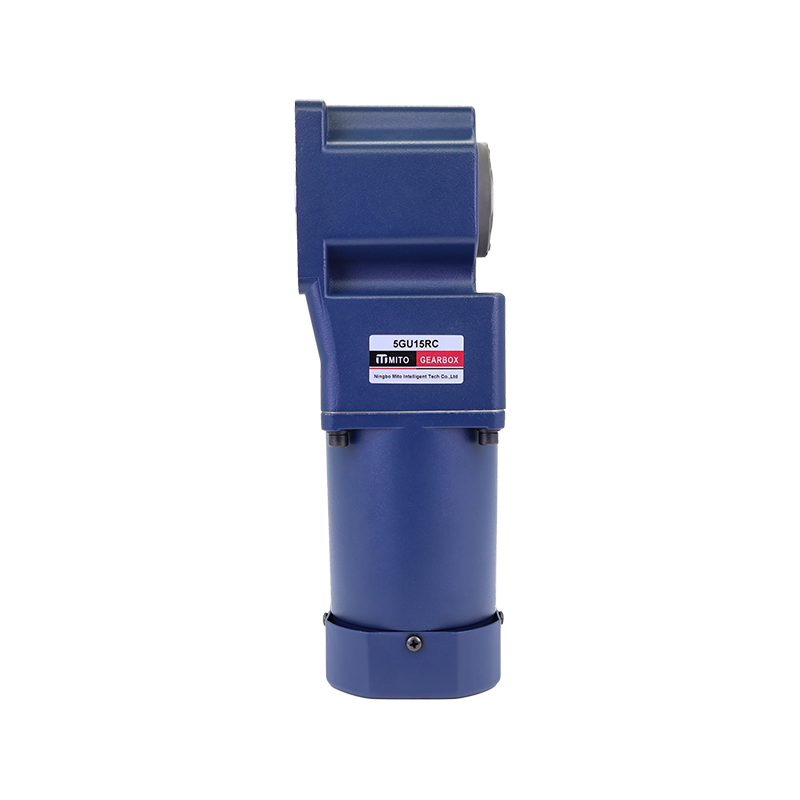

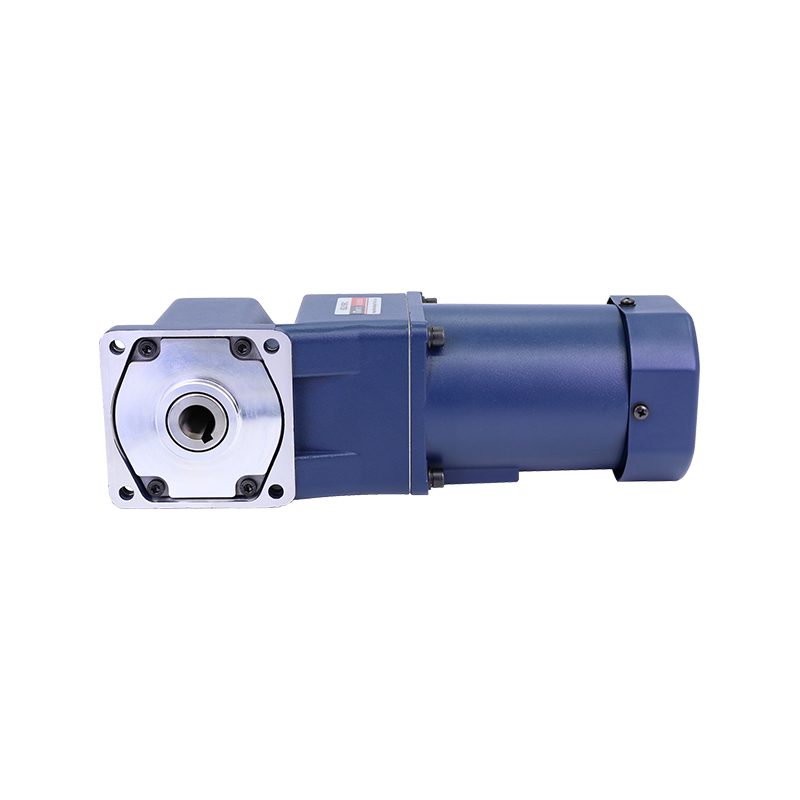

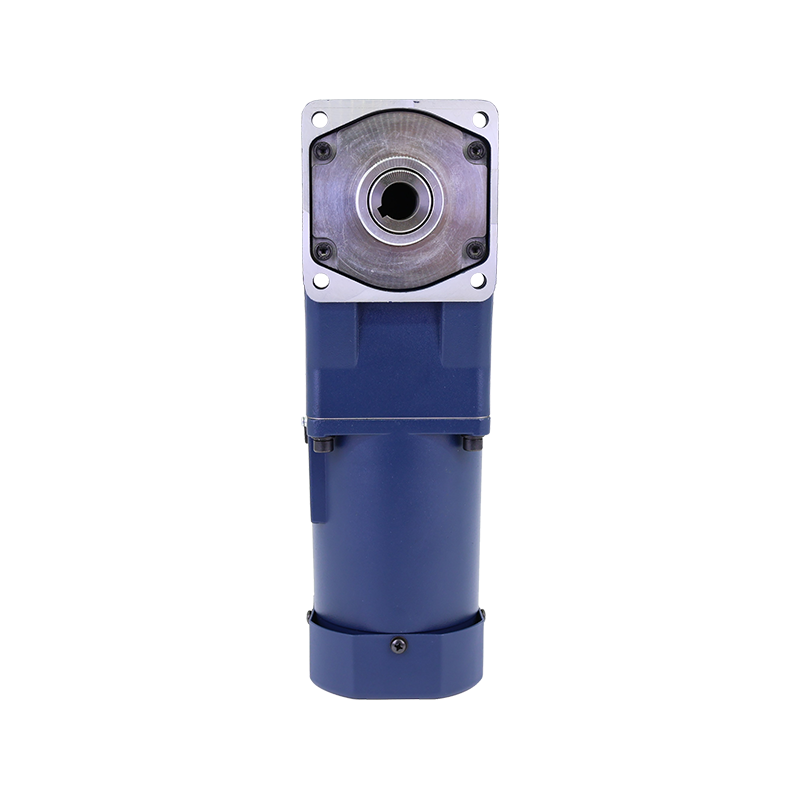

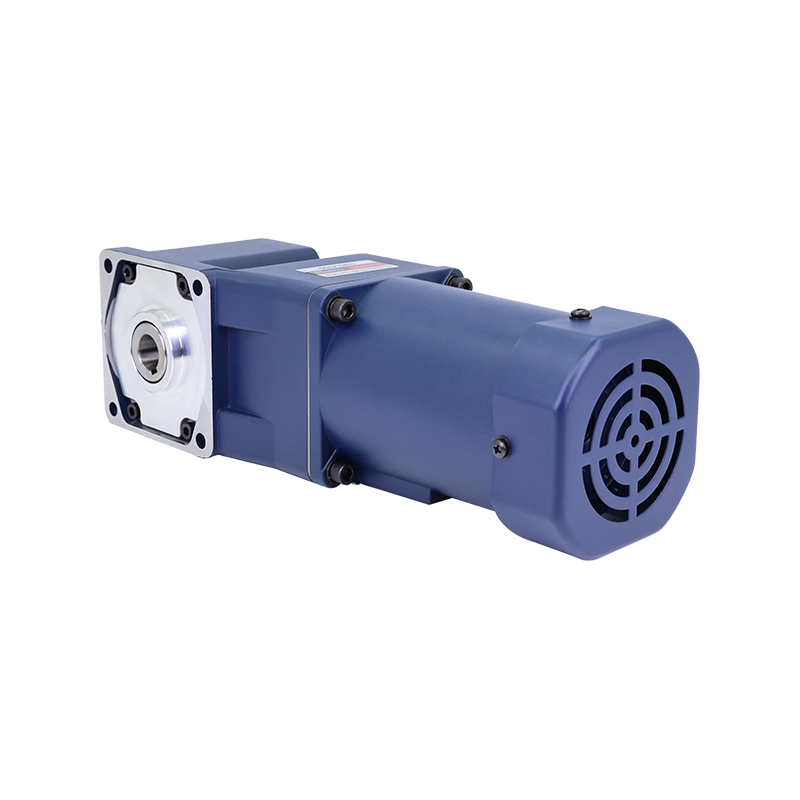

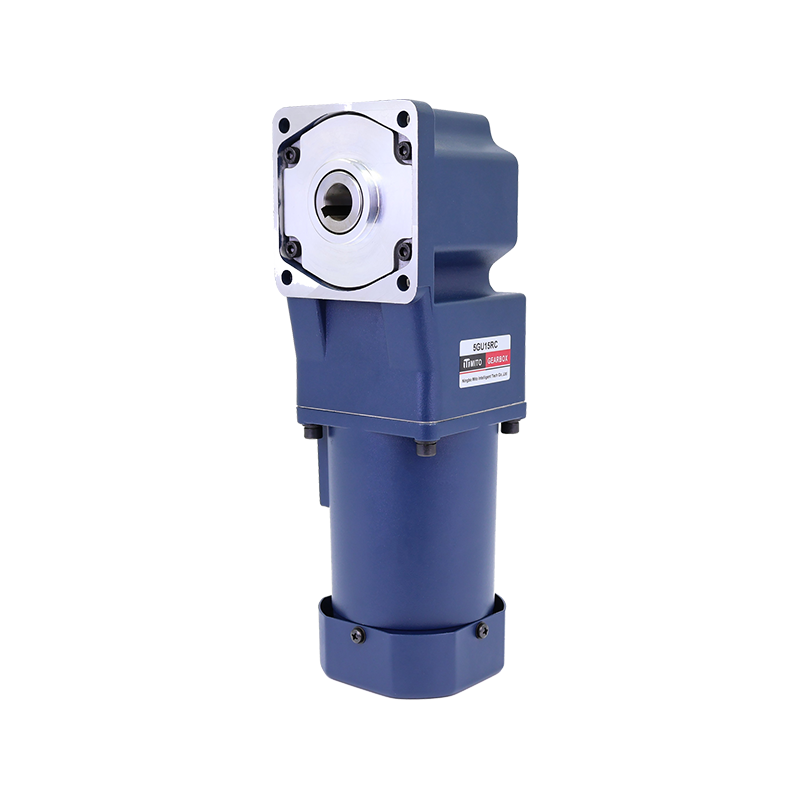

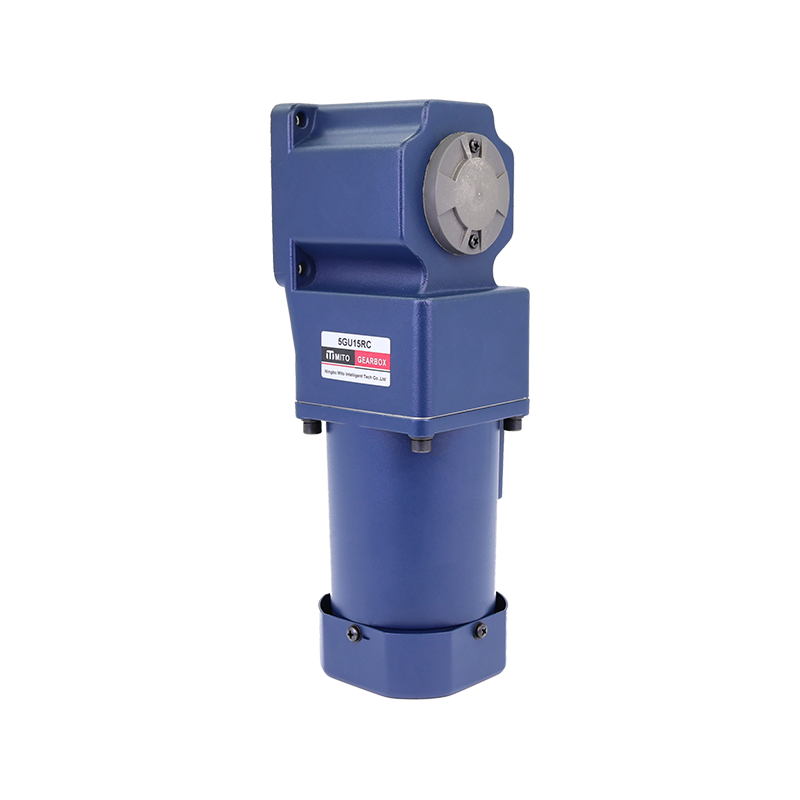

5RK 90mm 120W

Brake Motor

Motor Type: 5RK

Power: 120W

Voltage: 110-380V

Gearbox Ratio: 3-180K

Motor Parameter Table

Model ·Type Lead Wire Type	Rating	Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft
5RK120GU-AFM	30min	120	1ph 100	50	2.25	700	930	1250	35
				60	2.85		750	1550
5RK120GU-EFM	30min	120	1ph 110	60	1.90	650	750	1550	30
			1ph 120			720
5RK120GU-CFM	30min	120	1ph 220	50	1.15	720	930	1250	8.0
			1ph 230
5RK120GU-HFM	30min	120	1ph 220	60	1.20	720	750	1550	8.0
			1ph 230
5RK120GU-SFM	30min	120	3ph 220	50	0.70	1850	930	1250	-
				60	0.60	1600	750	1550
5RK120GU-S3FM	30min	120	3ph 380	50	0.40	1850	930	1250	-
				60	0.35	1600	750	1550

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
5RK120GUAF□M 5RK120GUEF□M 5RK120GUCF□M RK120GUHF□M 5RK120GUSF□M 5FK120GUS3F□M	5GU□RC 5GU□RT	Allowance Torque	50Hz-	1.50	1.80	2.51	3.01	4.73	5.01	5.57	7.89	9.47	10.0	11.14	15.8	18.9	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
			50Hz-	14.7	17.7	24.6	29.5	48.3	49.1	54.6	80.5	96.6	98.3	109	161	193	200	200	200	200	200	200	200	200	200
			60Hz-	1.25	1.50	2.09	2.51	3.82	4.18	4.64	6.36	7.64	8.35	9.28	12.7	15.3	16.5	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
			60Hz-	12.3	14.7	20.5	24.6	39.0	40.9	45.5	64.9	77.9	81.9	91.0	130	156	168	200	200	200	200	200	200	200	200

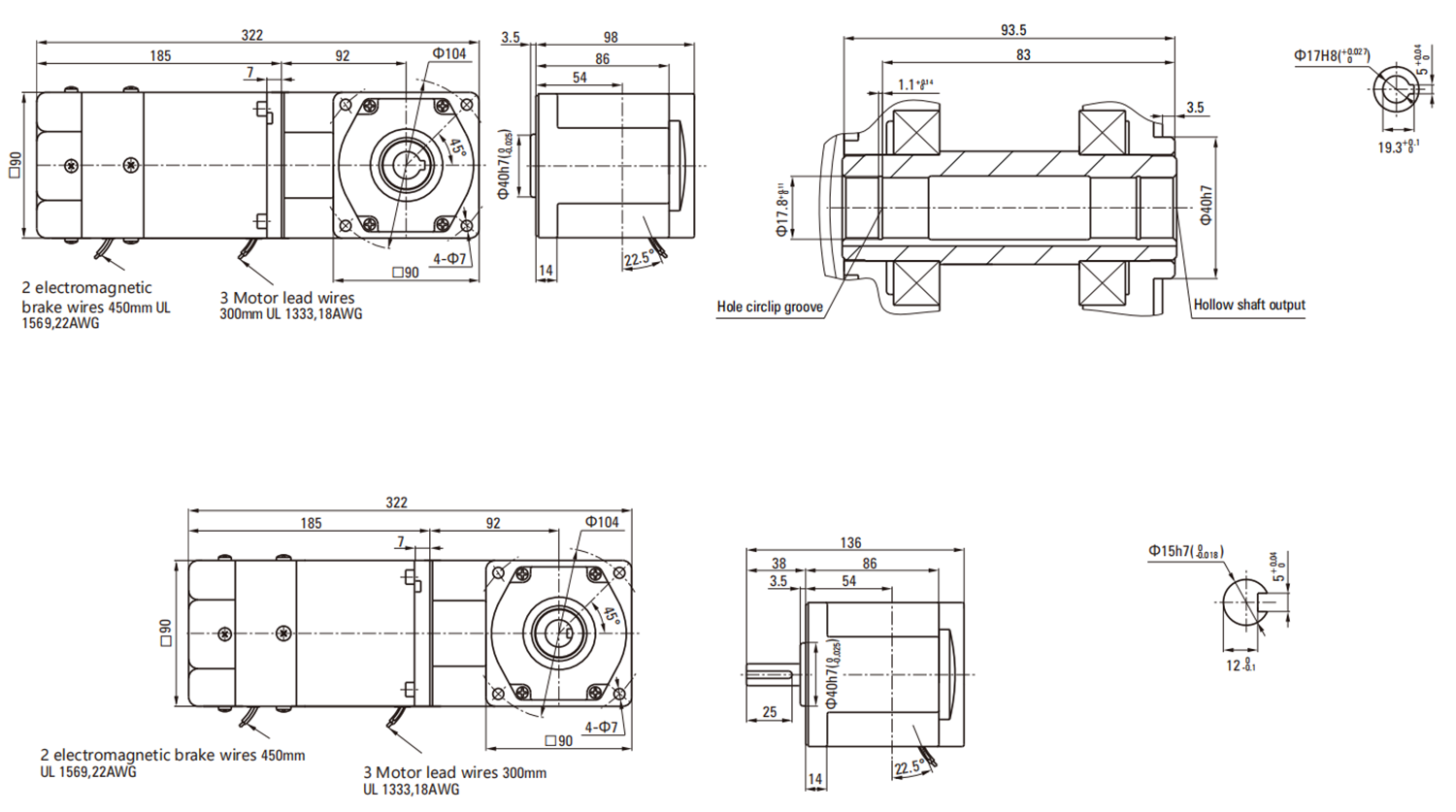

Lead Wiring Type

Description

The smooth braking AC motor is a drive product designed for industrial applications requiring high comfort during start-stop processes and system stability. Its focus is on reducing impact and vibration during braking, ensuring controlled and smooth motion during equipment stoppage. This model utilizes a 5RK motor structure with systematic optimization of mechanical strength and electromagnetic parameters. With a rated power of 120W, it provides continuous and stable power output under high load conditions, laying the foundation for smooth operation in complex working environments.
This smooth braking AC motor supports a wide voltage input range of 110V–380V, allowing for flexible application in different power supply environments and industrial systems, reducing the difficulty of electrical adaptation when deploying equipment in different projects and regions. The built-in braking unit emphasizes the continuity of the braking engagement and release process. By optimizing the braking response curve, it effectively mitigates mechanical shock caused by sudden changes in instantaneous braking force, ensuring good operational consistency during deceleration and stopping.
This motor is suitable for automated production lines, conveying equipment, assembly stations, and industrial machinery requiring high operational smoothness. Its design philosophy is to achieve low-impact, predictable braking performance at higher power levels, providing equipment manufacturers and system integrators with an AC motor solution that balances power output and operational quality.
