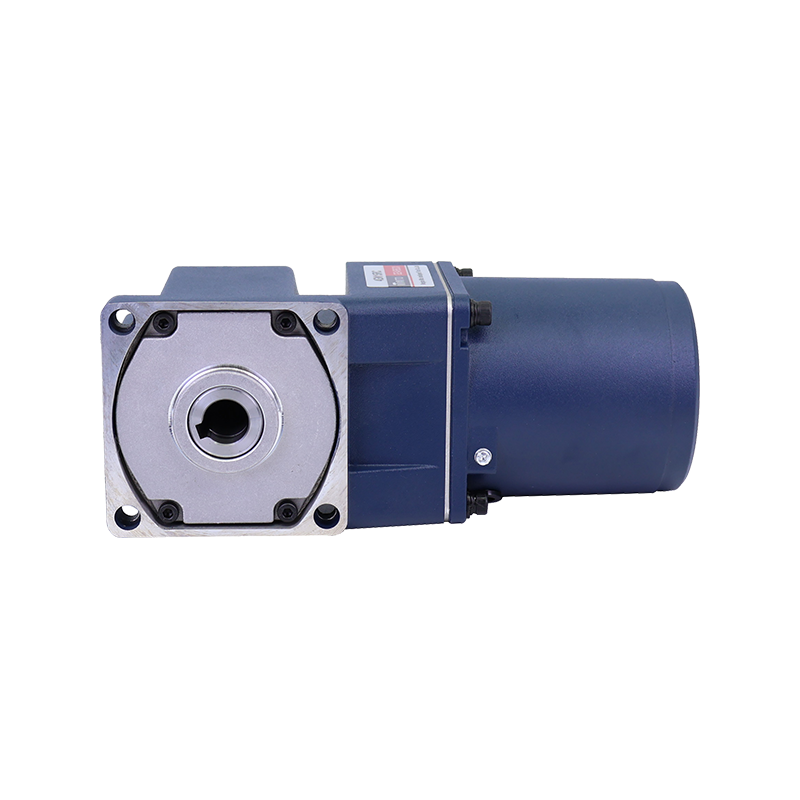

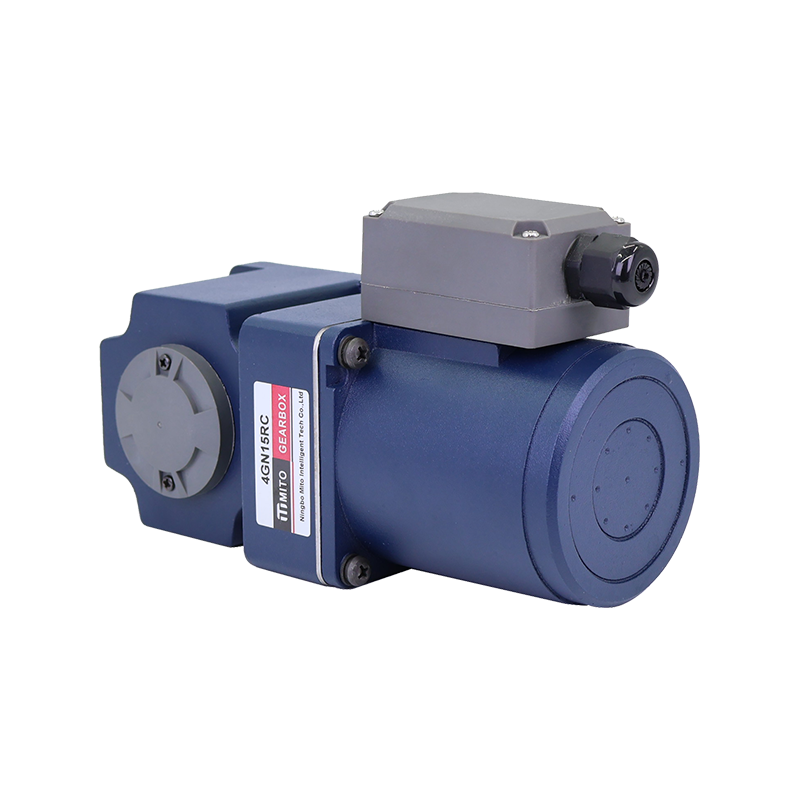

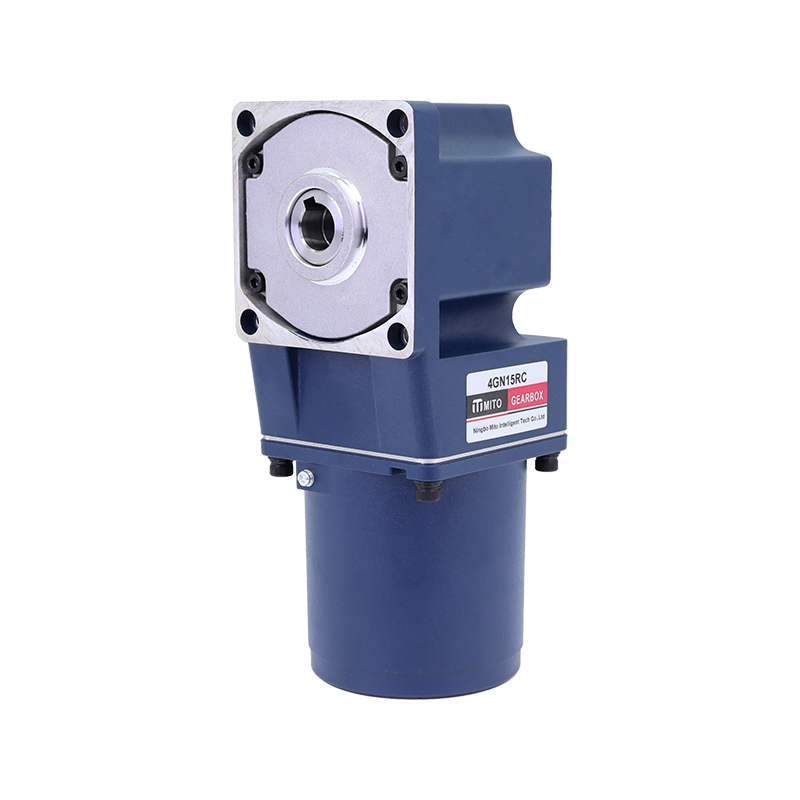

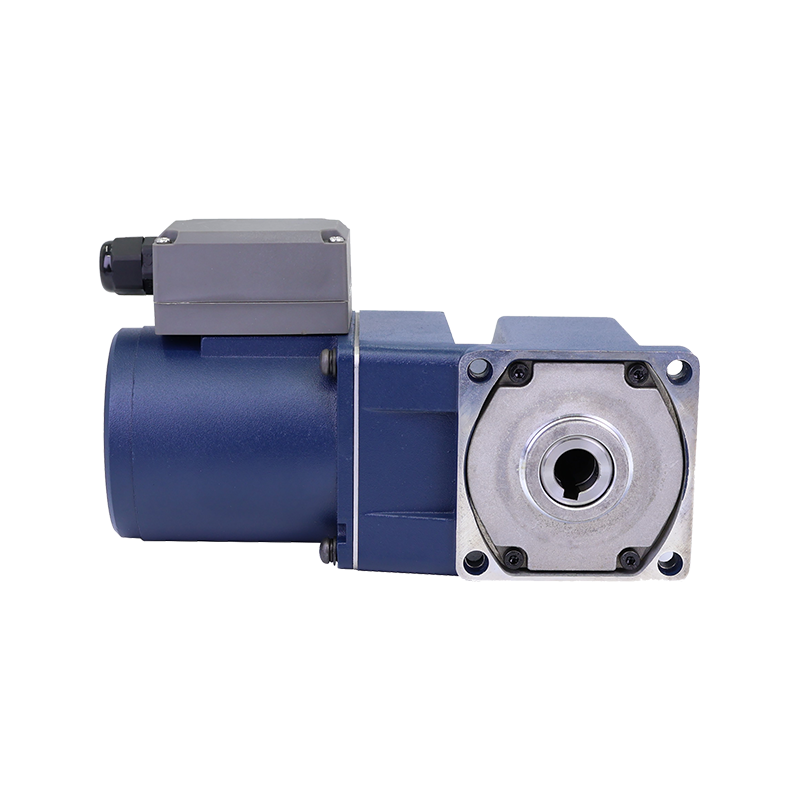

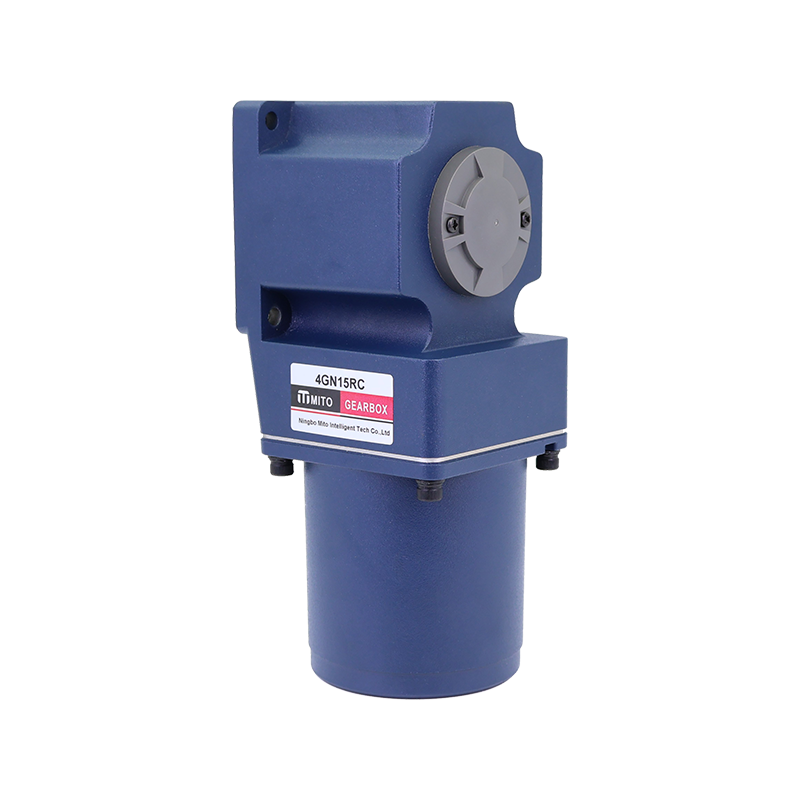

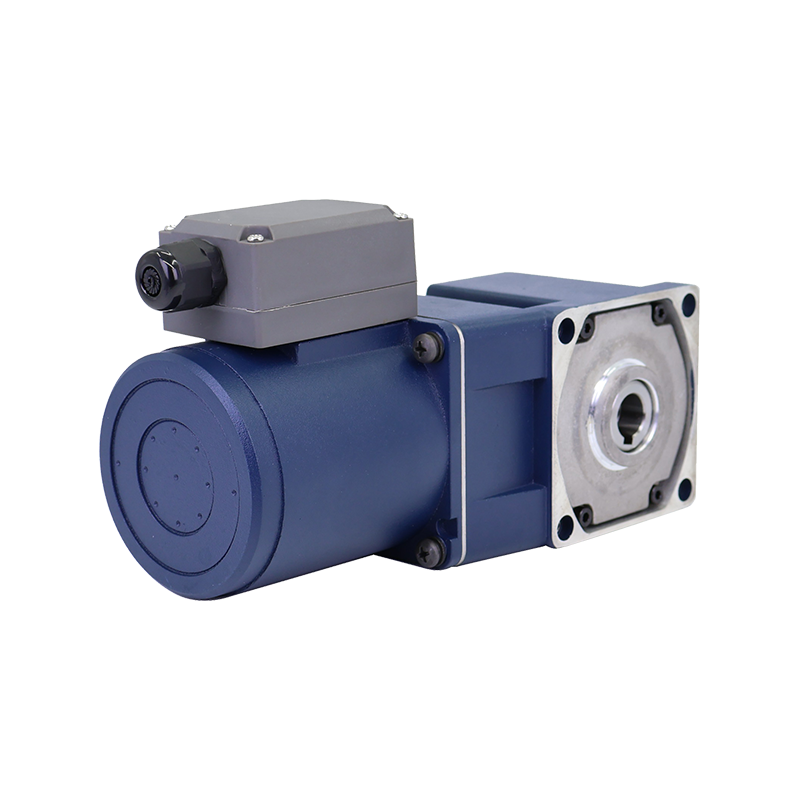

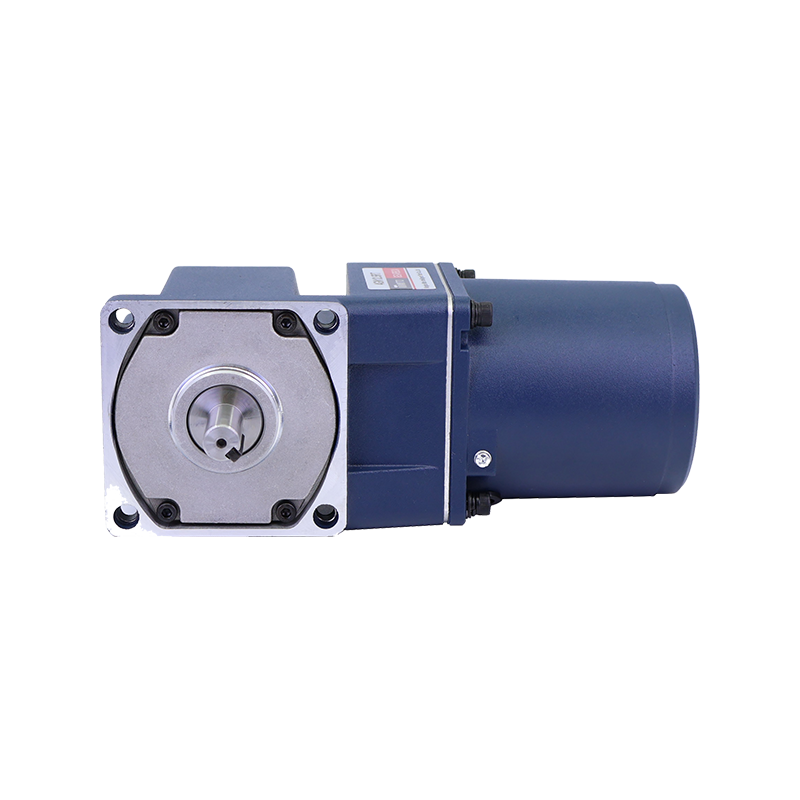

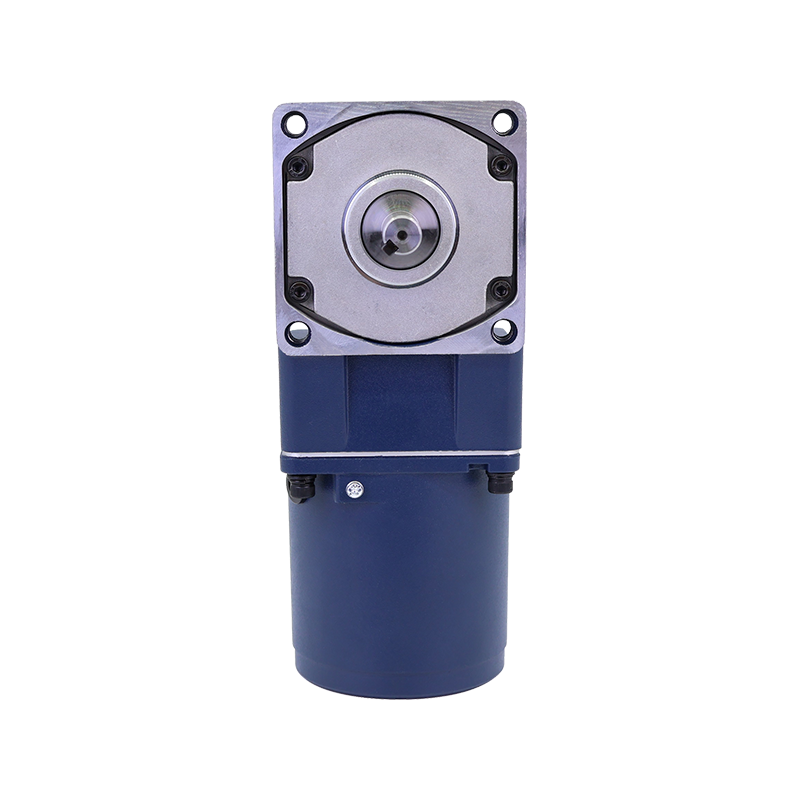

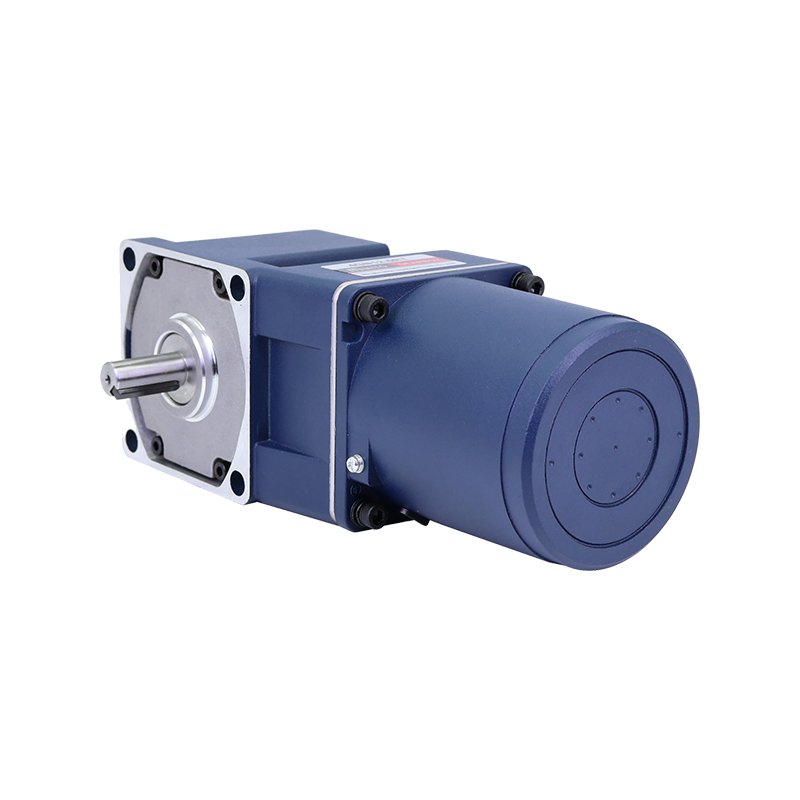

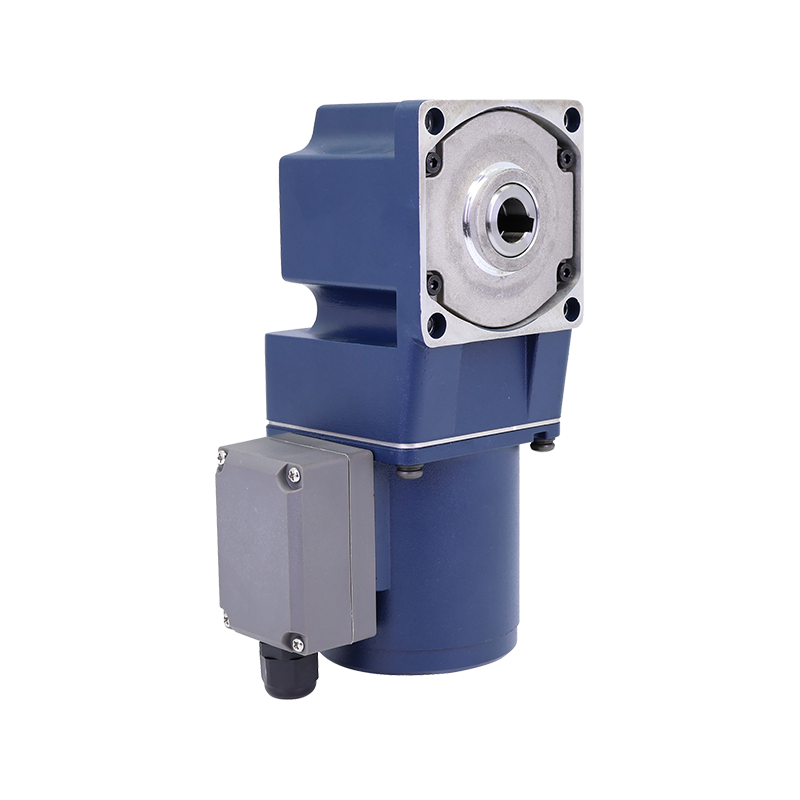

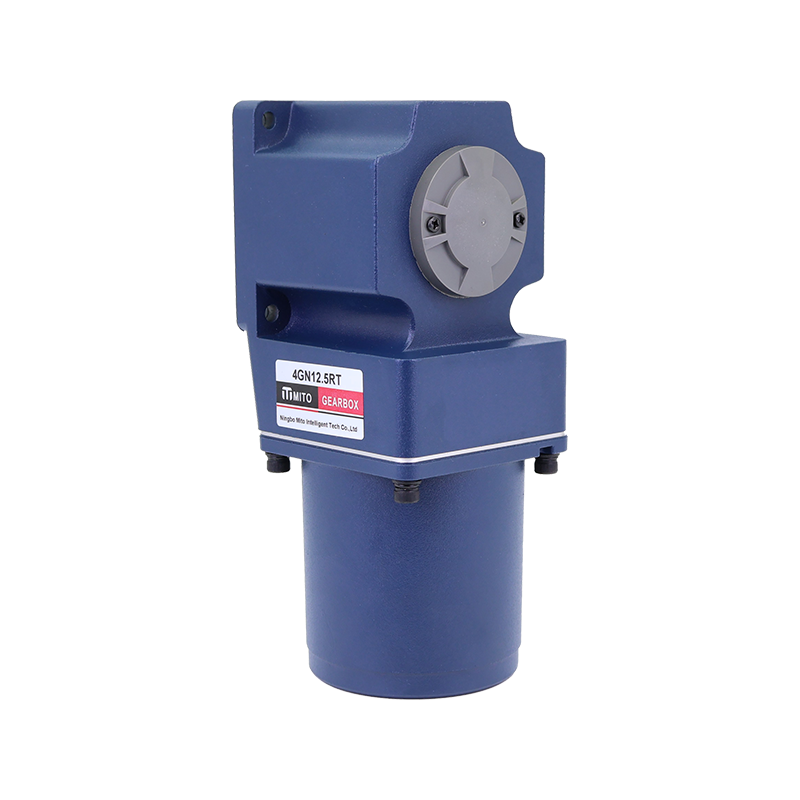

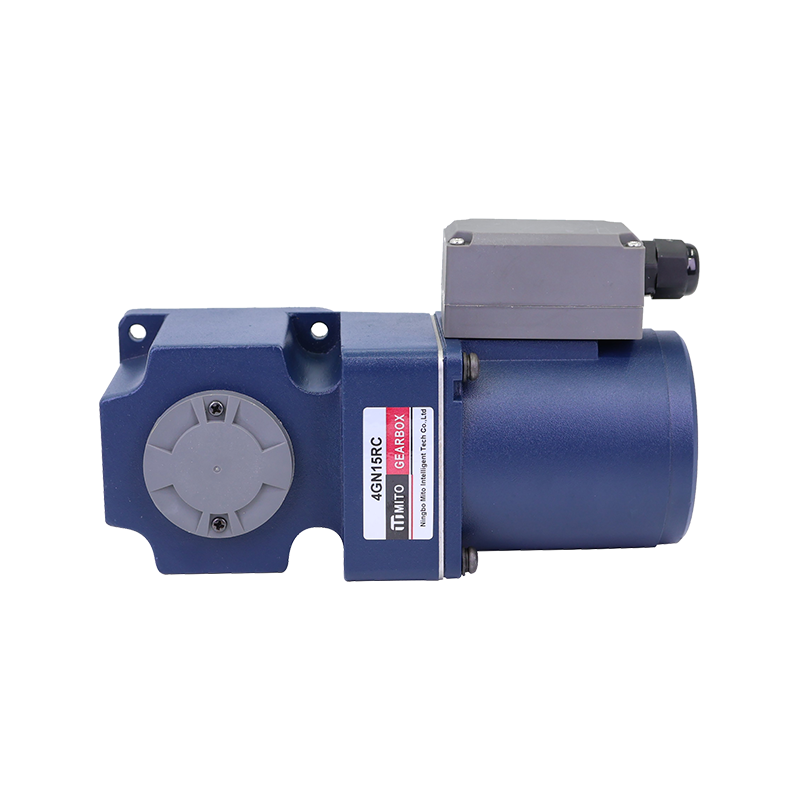

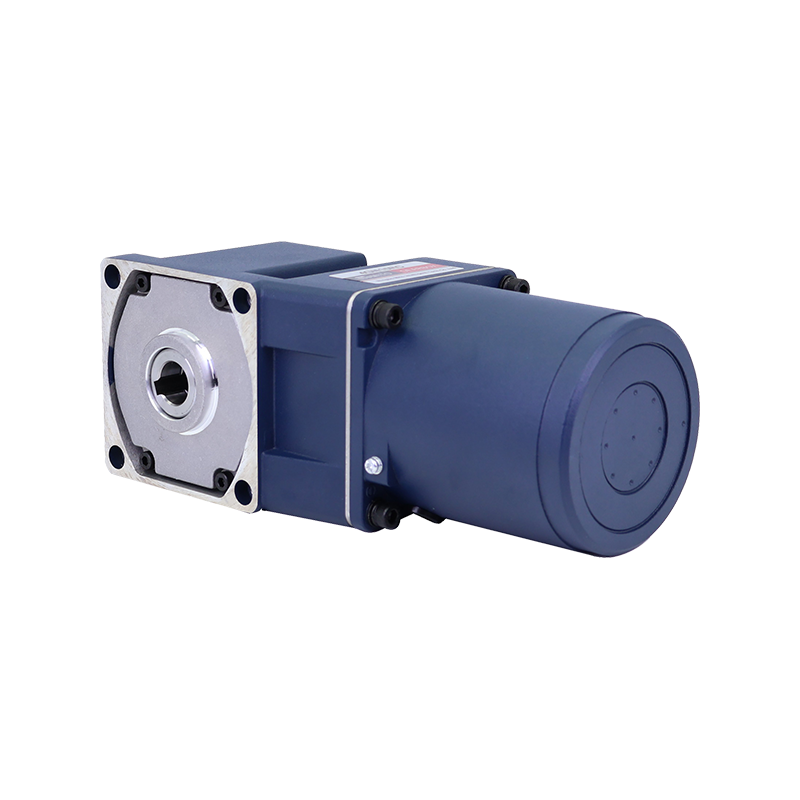

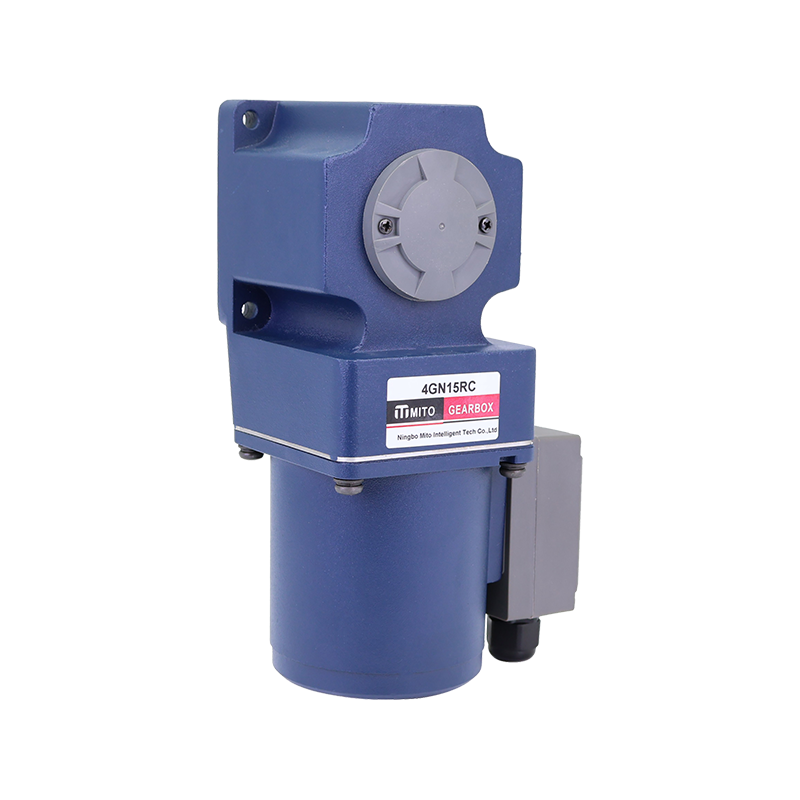

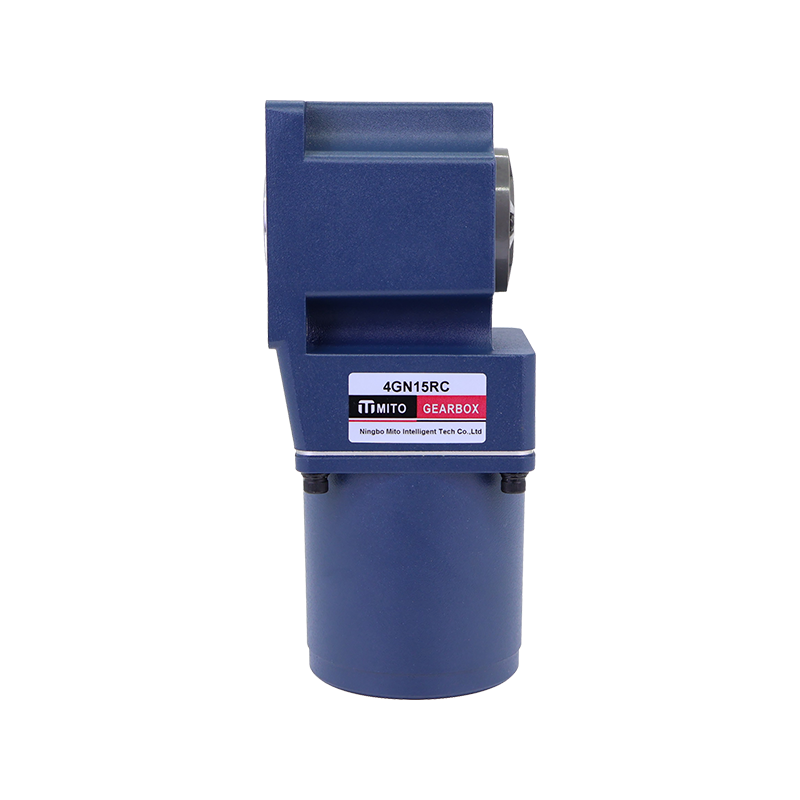

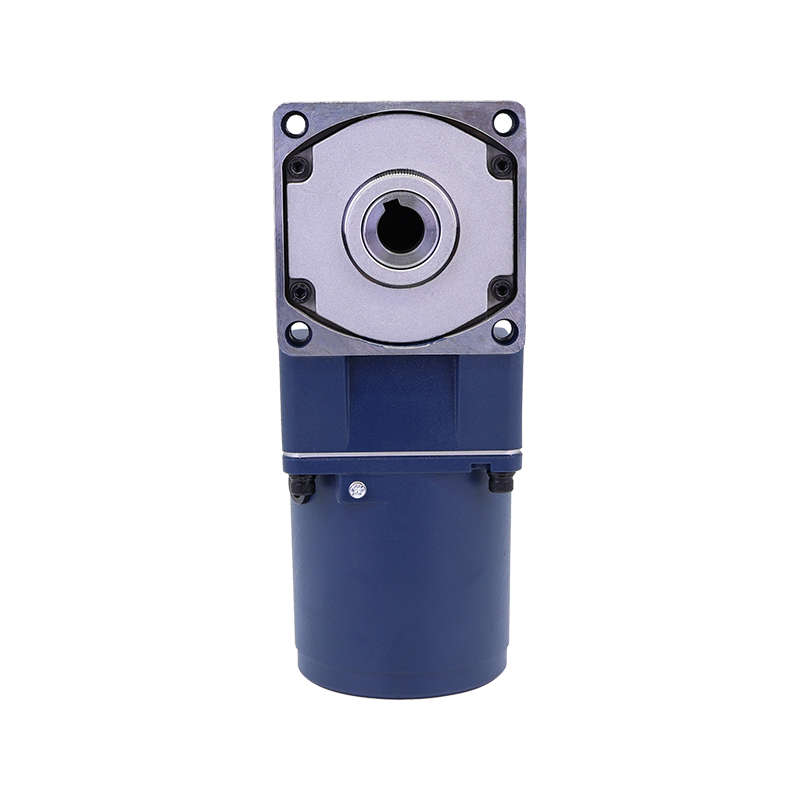

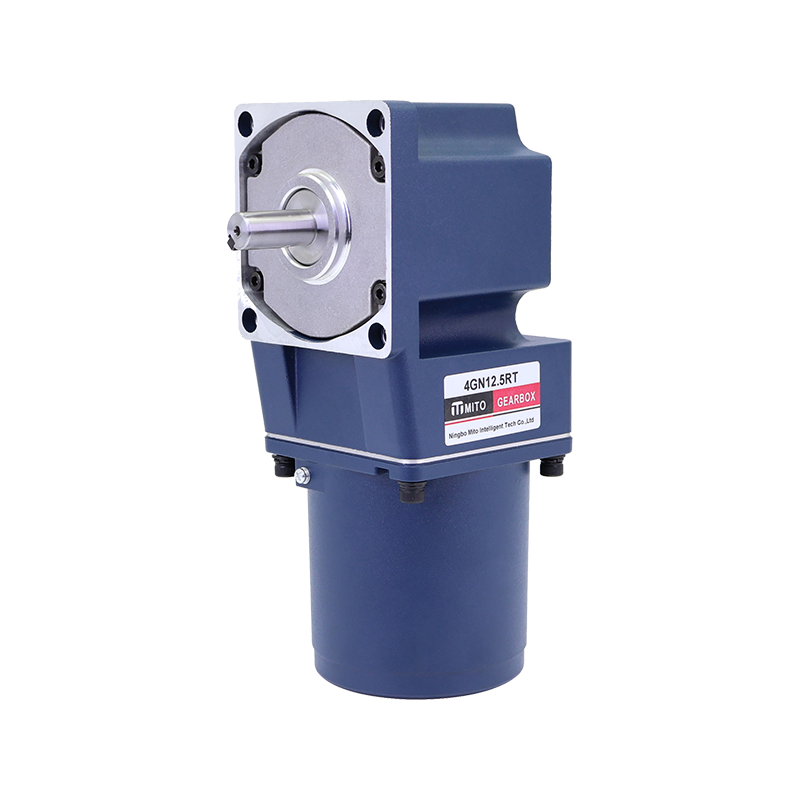

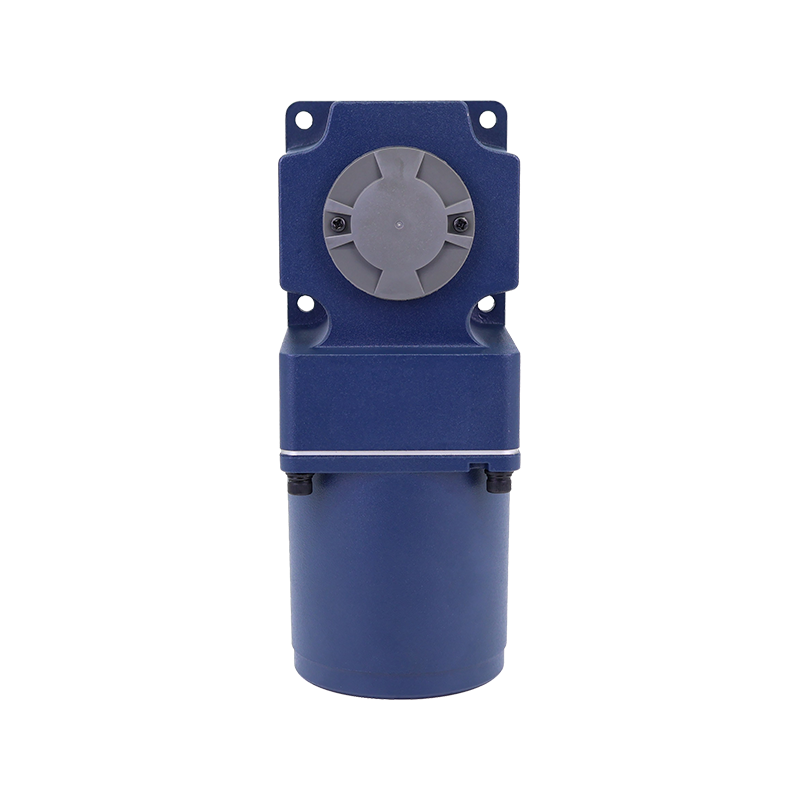

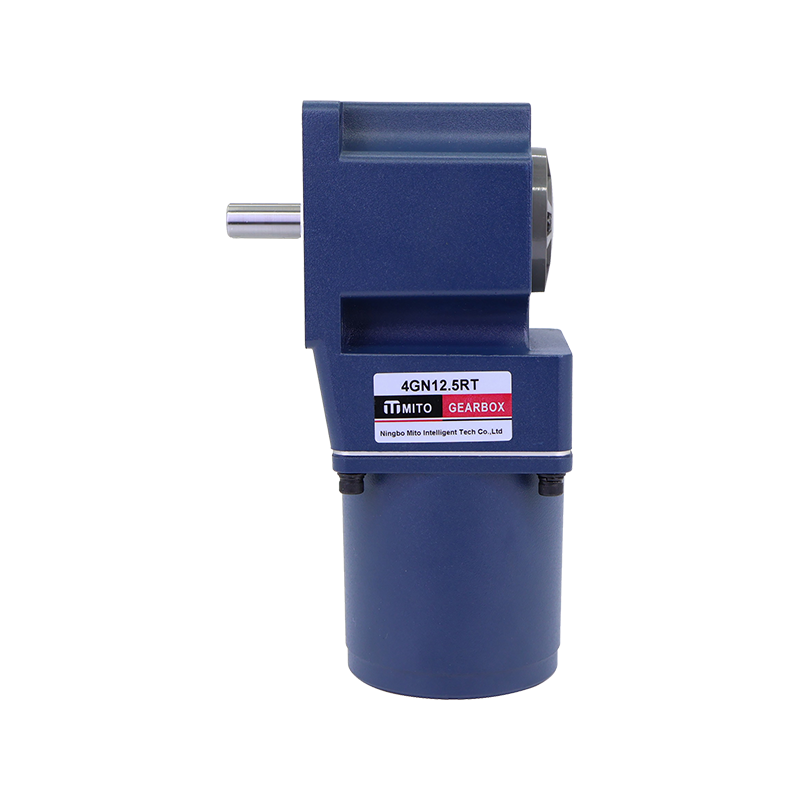

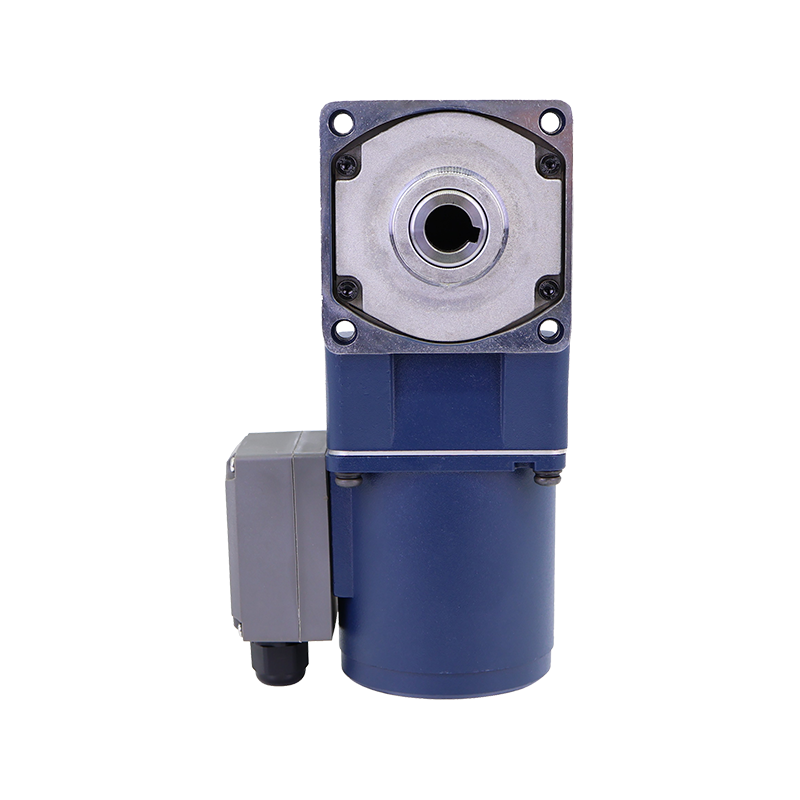

4RK 80mm 25W

Brake Motor

Motor Type: 4RK

Power: 25W

Voltage: 110-380V

Gearbox Ratio: 3-180K

Motor Parameter Table

Model ·Type Lead Wire Type	Rating	Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft
4RK25GN-AM	30min	25	1ph 100	50	0.59	160	200	1250	10
				60	0.69	140	165	1550
4RK25GN-EM	30min	25	1ph 110	60	0.45	140	165	1550	8.0
			1ph 120		0.50
4RK25GN-CM	30min	25	1ph 220	50	0.29	140	200	1250	2.2
			1ph 230		0.30	160
4RK25GN-HM	30min	25	1ph 220	60	0.35	140	165	1550	2.2
			1ph 230
4RK25GN-SM	30min	25	3ph 220	50	0.185	350	200	1250	-
				60	0.170	250	165	1550
4RK25GN-S3M	30min	25	3ph 380	50	0.107	350	200	1250	-
				60	0.098	250	165	1550

Allowance Torque

Type Motor/Gearhead		Gear Ratio		3	5	7.5	9	10	12.5	15	18	20	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	500	300	200	166	150	120	100	83	75	60	50	42	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	600	360	240	200	180	144	120	100	90	72	60	50	36	30	24	20	18	15	12	10
4RK25GNAM□ 4RK25GNEM□ 4RK25GN CM□ RK25GNHM□ 4RK25GNSM□ 4RK25GNS3M□	4GN□RC 4GN□RT	Allowance Torque	50Hz	0.31	0.52	0.99	1.04	1.16	1.64	1.97	2.09	2.32	3.29	3.95	4.73	6.58	7.10	8.00	8.00	8.00	8.00	8.00	8.00
			50Hz	3.07	5.12	10.1	10.2	11.37	16.8	20.1	20.5	22.74	33.5	40.3	48.3	67.1	72.5	80.0	80.0	80.0	80.0	80.0	80.0
			60Hz	0.26	0.44	0.80	0.87	0.97	1.33	1.59	1.74	1.93	2.65	3.18	3.82	5.30	5.73	7.16	8.00	8.00	8.00	8.00	8.00
			60Hz	2.56	4.26	8.12	8.53	9.48	13.5	16.2	17.1	18.95	27.1	32.5	39.0	54.1	58.4	73.0	80.0	80.0	80.0	80.0	80.0

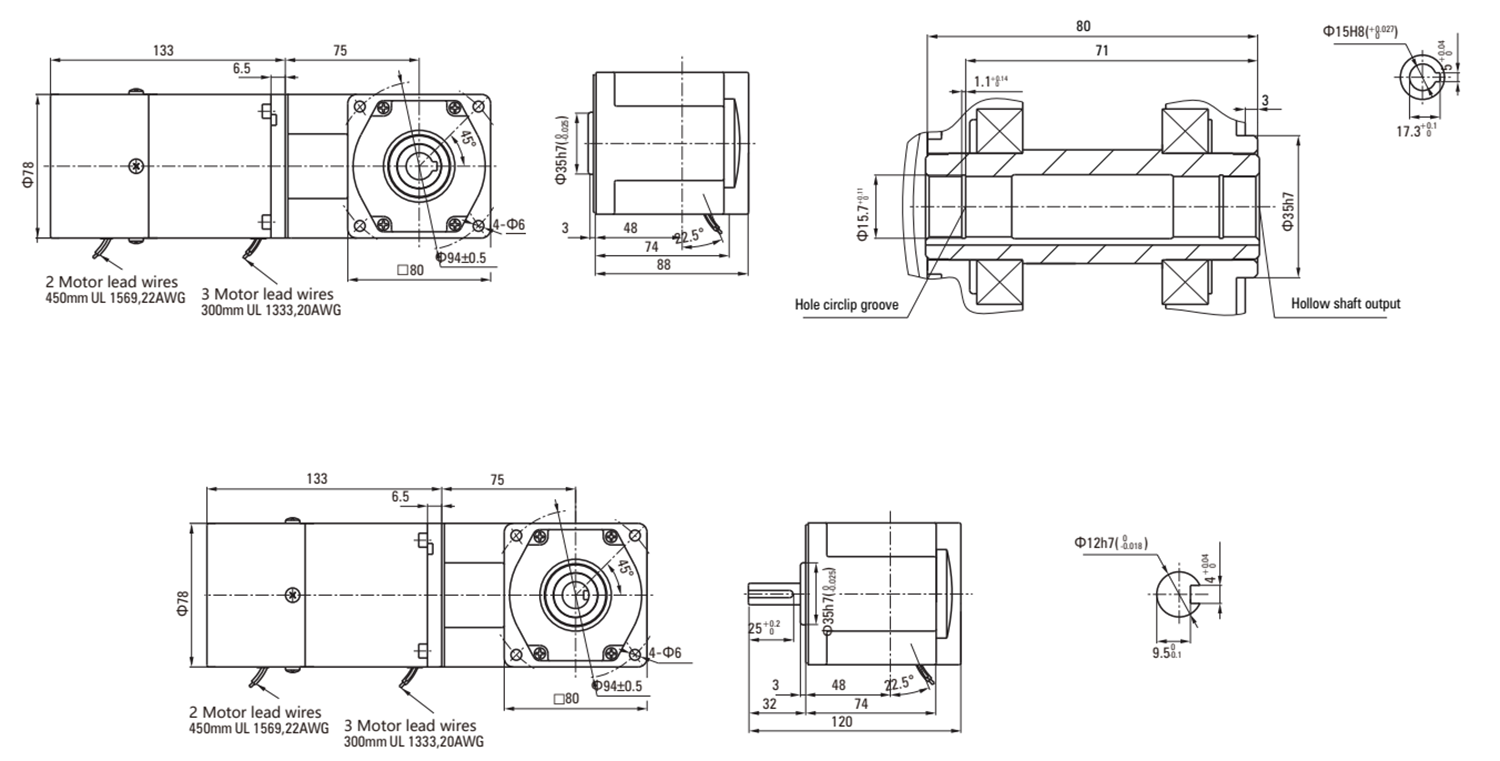

Lead Wiring Type

Description

The standard AC brake motor is a basic drive product designed for general industrial automation applications, emphasizing balanced performance, clear selection options, and long-term operational reliability. This model utilizes a 4RK motor structure, achieving a reasonable balance between power output and braking performance based on mature electromagnetic design and mechanical structure. With a rated power of 25W, it meets the drive requirements of most small and medium-sized equipment under continuous operation and intermittent start-stop conditions, making it suitable as a general-purpose actuator in various automation systems.
This standard AC brake motor supports a wide voltage input range of 110V–380V, allowing for flexible application in different power supply environments and reducing selection limitations due to voltage differences, facilitating equipment deployment in different markets and application scenarios. The built-in braking mechanism acts quickly upon power failure or shutdown, providing a stable braking torque to effectively maintain the load position and prevent displacement caused by inertia or external forces, thereby improving the safety and controllability of the overall system operation.
This product can be matched with a reduction ratio range of 3–180K, allowing for flexible configuration based on the different speed and torque requirements of the equipment. By rationally selecting the reduction ratio, the motor can output effective torque suitable for actual working conditions while ensuring smooth operation, meeting the needs of various basic automation applications such as conveying, positioning, and pushing/pulling. The matching of the reduction mechanism and the motor body has been verified, helping to reduce mechanical shock during operation and improve the stability of the overall transmission system.
