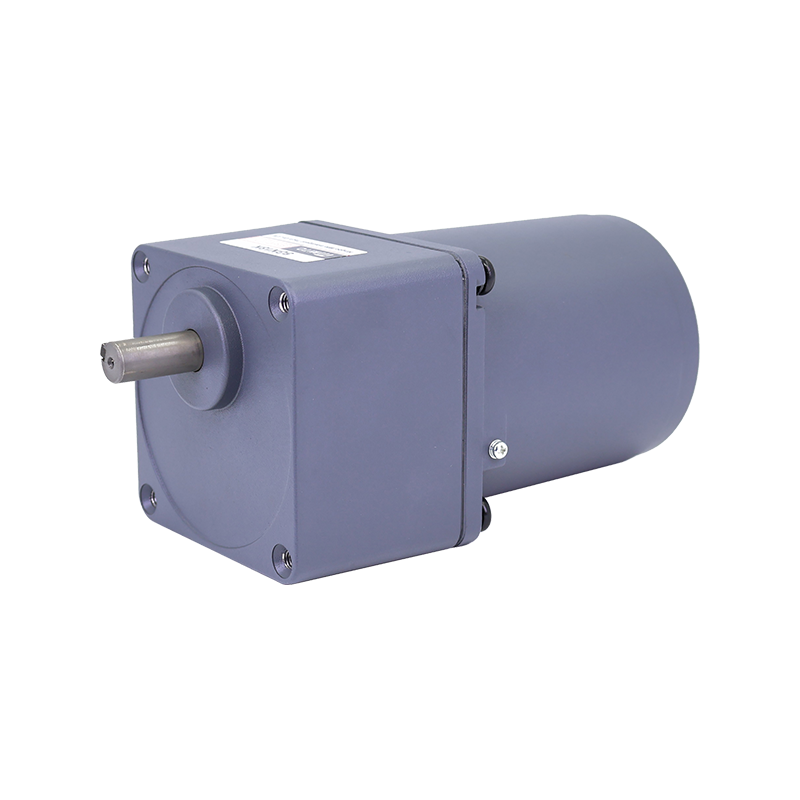

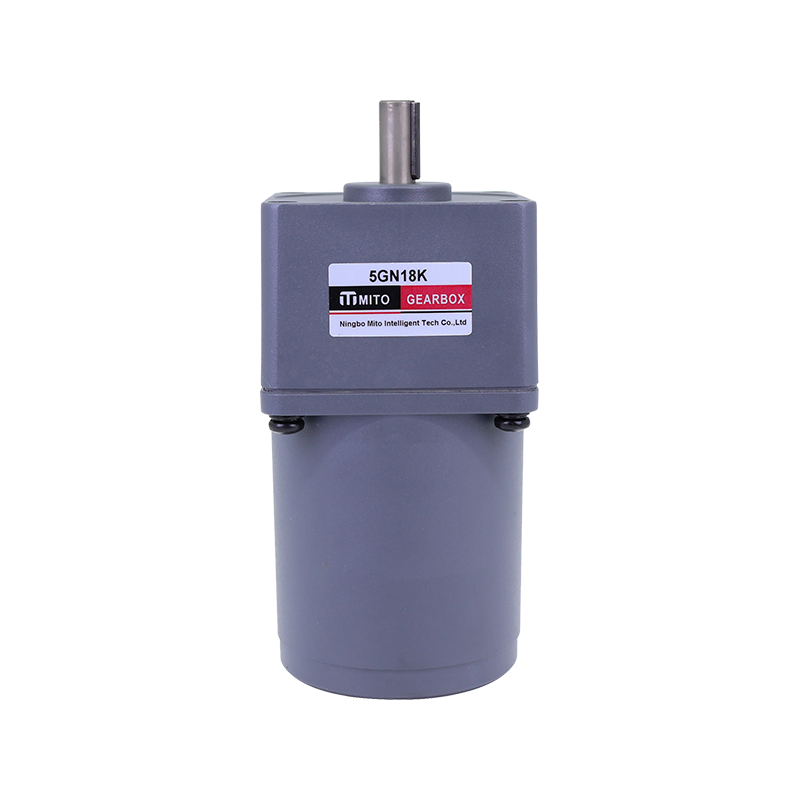

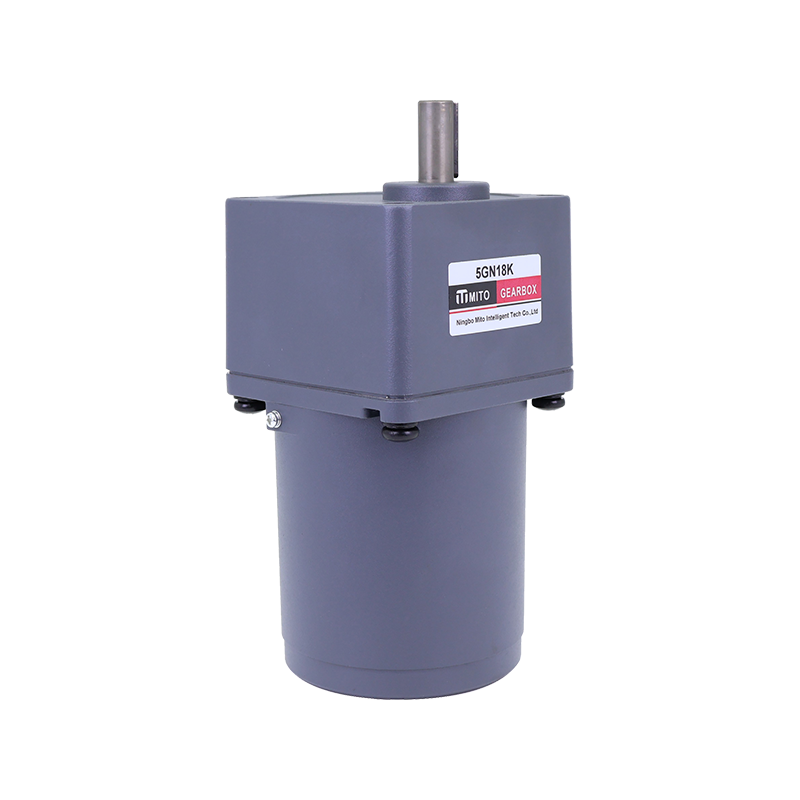

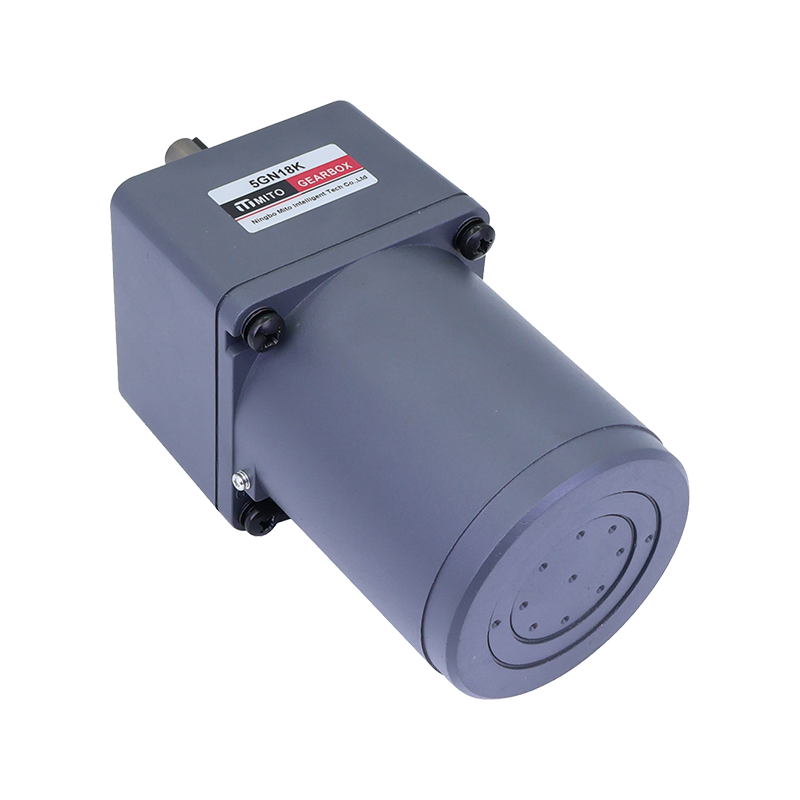

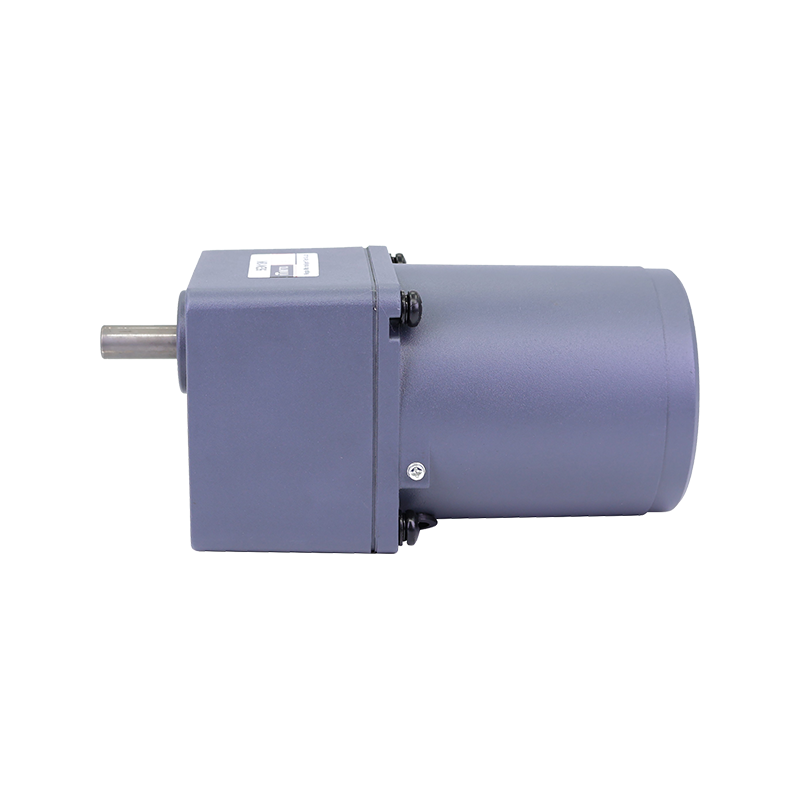

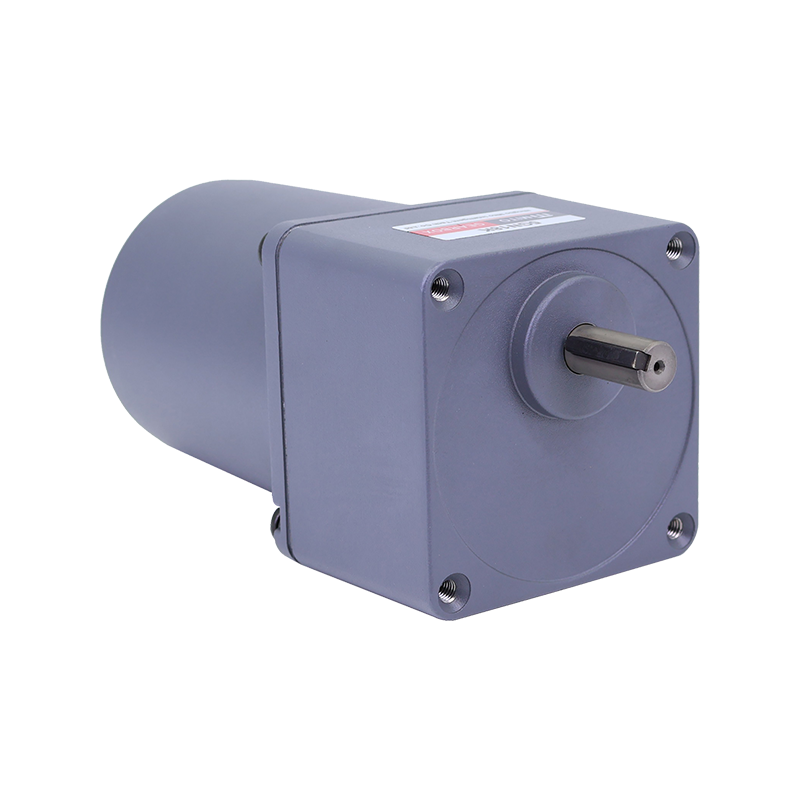

2TK 60mm 3W&3TK 70mm 6W&4TK 80mm 10W&5TK 90mm 20W

Lead Wiring Type

Description

The high-precision controlled AC torque motor is a drive product designed for sophisticated motion control applications, focusing on addressing the requirements for torque controllability, operational consistency, and system response stability under low-power conditions. This series covers multiple motor types, including 2TK, 3TK, 4TK, and 5TK, with power ratings of 3W, 6W, 10W, and 20W.  It allows for flexible selection based on equipment load characteristics and control objectives, making it suitable for integration into multi-specification, small-batch, and customized automation equipment.
This high-precision AC torque motor supports a wide voltage input range of 110V–380V, adapting to power supply environments in different regions and industries, thus reducing system design complexity. The motor's magnetic circuit structure and winding parameters were optimized during the design phase to maintain excellent linearity of the output torque throughout the entire operating range. This facilitates precise adjustment of torque changes by the control system, making it particularly suitable for applications requiring continuous and smooth output adjustment.
The product can be matched with reduction ratios ranging from 3 to 200K. By rationally combining the reduction mechanism, higher equivalent output torque can be obtained under low-speed operating conditions while maintaining predictable speed and torque variations. The reduction system and the motor body are matched under the same design logic, which helps reduce the impact of transmission backlash on control accuracy, improves the consistency of repetitive movements, and meets the requirements of equipment demanding positional stability and tension control.
