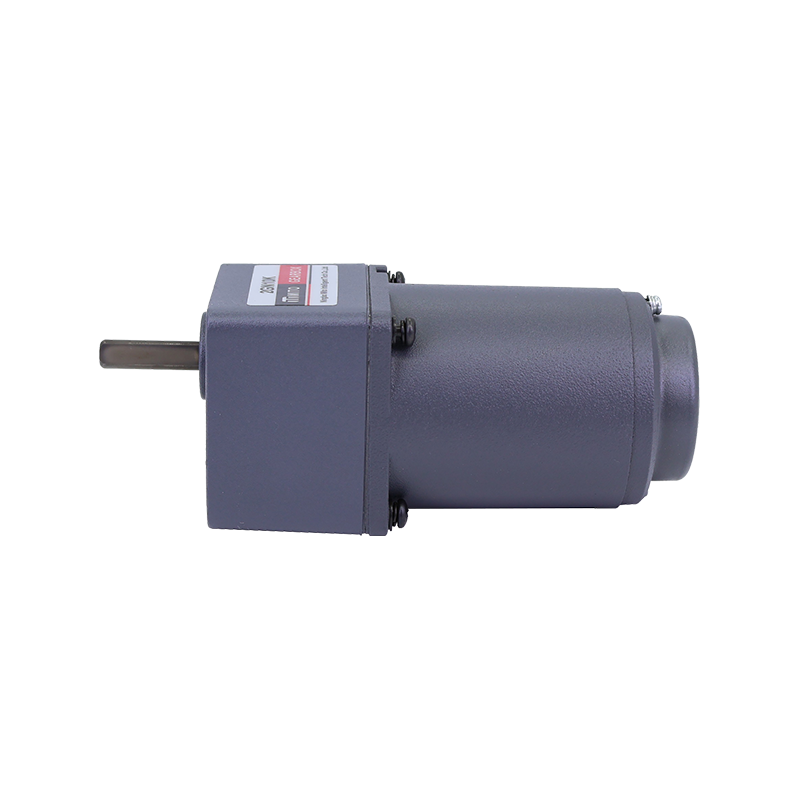

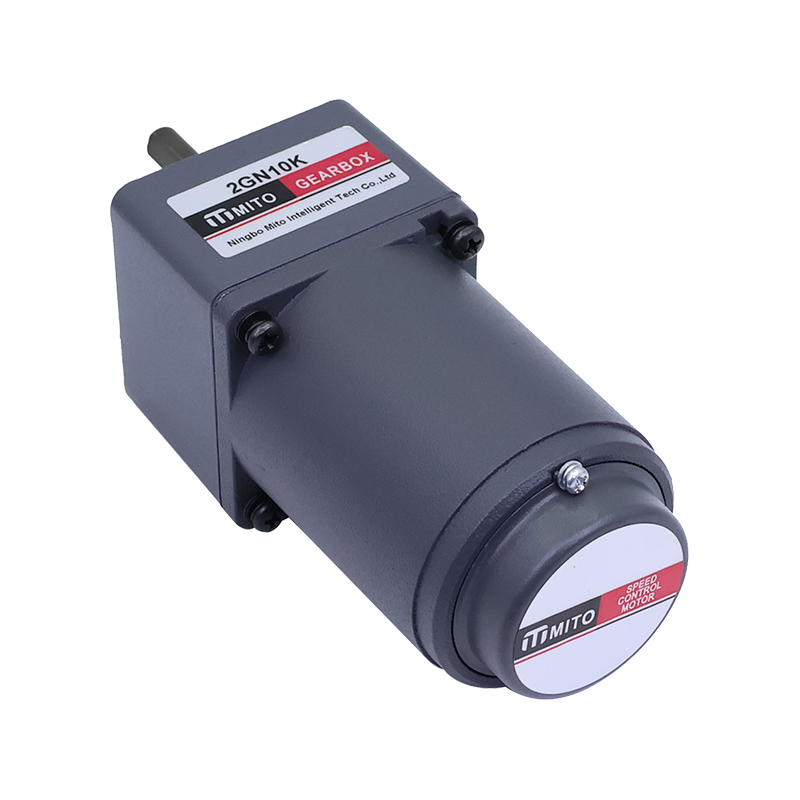

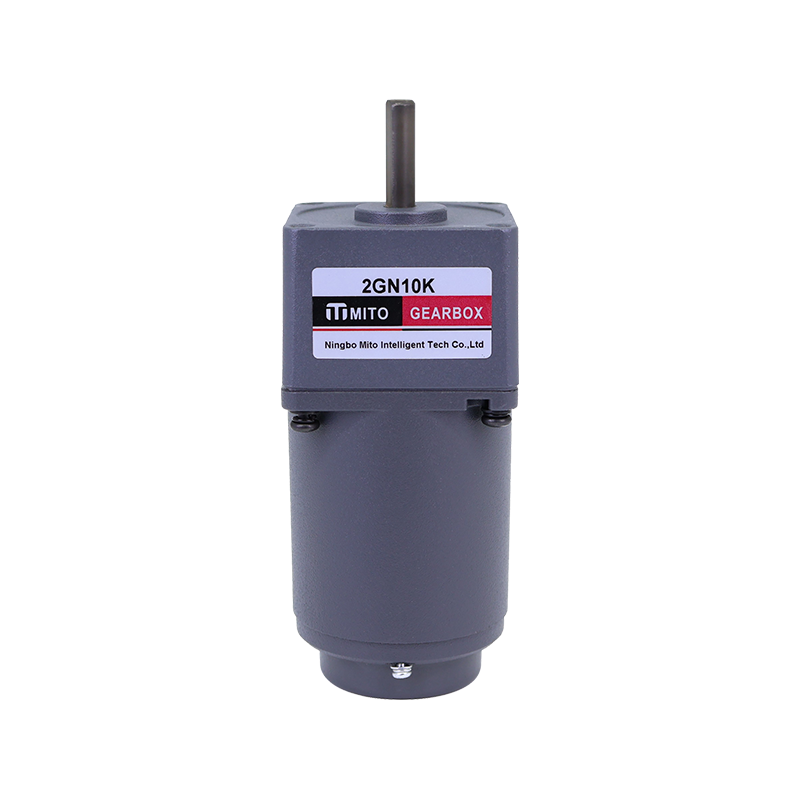

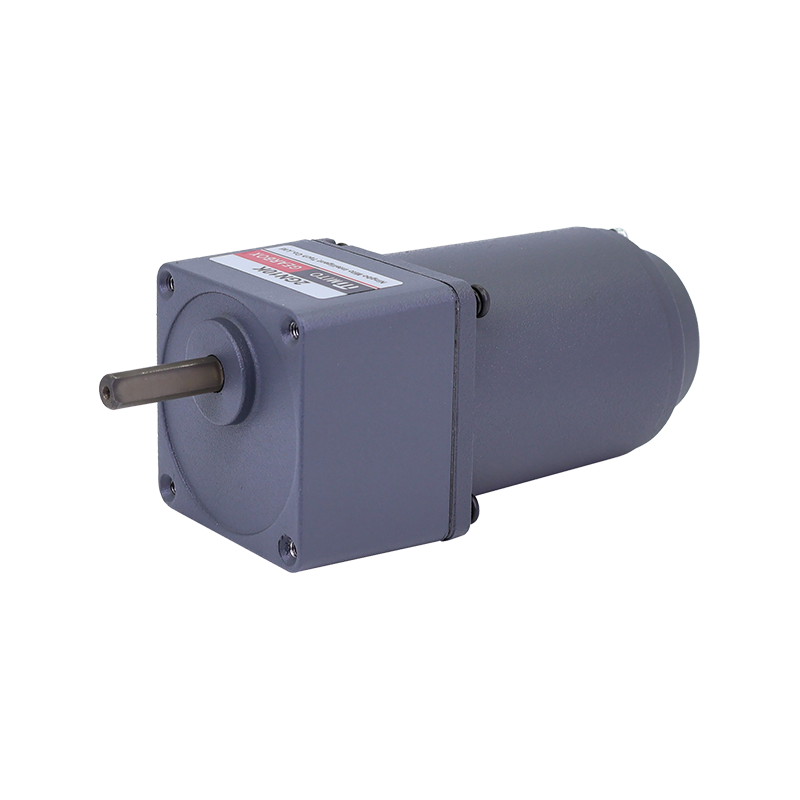

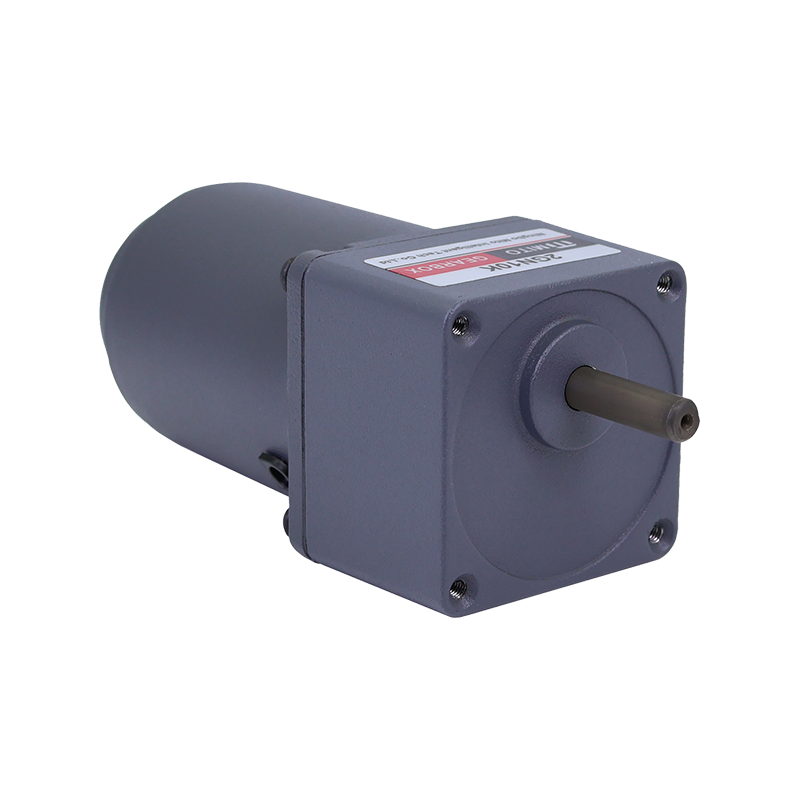

2RK 60mm 6W

AC Reversible Motor

Motor Type: 2RK

Power: 6W

Voltage: 110-380V

Gearbox Ratio: 3-200K

Motor Parameter Table

Model ·Type Lead Wire Type		Output Power W	Voltage V	Frequeny Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft	Round Shaft
2RK6GN-A	2RK6A-A	6	1ph 100	50	0.265	60	48	1200	4.0
				60	0.232	55	40	1450
2RK6GN-E	2RK6A-E	6	1ph 110	50	0.185	45	40	1450	2.5
			1ph 120	60	0.200
2RK6GN-C	2RK6A-C	6	1ph 220	50	0.145	55	48	1200	1.0
			1ph 230	60	0.150
2RK6GN-H	2RK6A-H	6	1ph 220	50	0.145	40	60	1450	1.0
			1ph 230	60	0.150

Allowance Torque

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
2RK6GN-A 2RK6GN-E 2RK6GN-C 2RK6GN-H	2GN□K	50Hz	0.12	0.14	0.19	0.23	0.29	0.35	0.39	0.49	0.58	0.70	0.75	0.88	1.10	1.30	1.39	1.60	1.90	2.40	2.90	3.00	3.00	3.00	3.00	3.00
		50Hz	1.22	1.43	1.94	2.35	2.96	3.57	3.98	5.00	5.92	7.14	7.65	8.98	11.2	13.3	14.2	16.3	19.4	24.5	29.6	30.0	30.0	30.0	30.0	30.0
		60Hz	0.10	0.12	0.16	0.19	0.24	0.29	0.32	0.41	0.49	0.58	0.62	0.73	0.88	1.10	1.15	1.30	1.60	2.00	2.40	2.60	3.00	3.00	3.00	3.00
		60Hz	1.02	1.22	1.63	1.94	2.45	2.96	3.26	4.18	5.00	5.92	6.32	7.45	8.98	11.2	11.7	13.3	16.3	20.4	24.5	2.65	30.0	30.0	30.0	30.0

Lead Wiring Type

Description

This stable-drive AC reversible motor features a 6W power output and a wide voltage range of 110–380V, making it adaptable to various power conditions in industrial and everyday automation equipment. Structurally, the motor employs AC reversible control, allowing users to easily switch between forward and reverse directions through simple wiring configuration. This helps improve overall efficiency in reciprocating motion, positioning operations, or scenarios requiring frequent direction changes. The compact motor body is suitable for space-constrained mechanical structures, while maintaining a relatively balanced torque output during continuous operation, facilitating stable motion control.
This model is paired with a 3–200K gearbox combination, covering various application requirements from low-speed, high-torque to medium-speed output. Users can select the appropriate reduction ratio based on specific load conditions, ensuring reliable output performance under different operating conditions. The 2RK structural design emphasizes mechanical stability and operational consistency, making it suitable for applications requiring long-term operation. Its AC drive reduces maintenance frequency, and combined with a reasonable heat dissipation structure, it can maintain normal operation under continuous load conditions.
